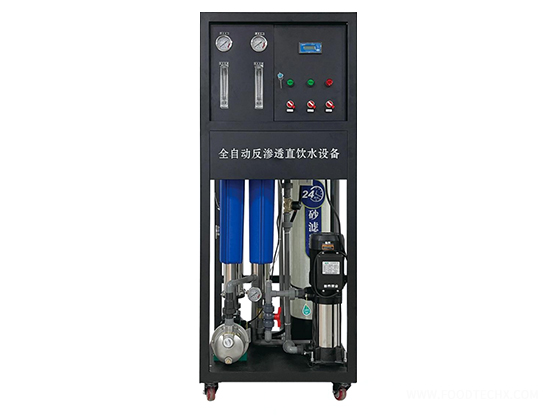

0.5 Ton Reverse Osmosis (RO) Equipment List
| Component | Product Name | Specification & Model | Unit | Quantity | Place of Origin | Function Introduction & Remarks |
|---|---|---|---|---|---|---|
| - | Raw Water Pump | JET550G | Unit | 1 | Xinjie | Provides flow and pressure for raw water intake |
| Quartz Sand Processor | Quartz Sand Filter Tank | Model: 844
|
Piece | 1 | Hebei | Stores filter media; precipitates and filters raw water to remove floating substances, particulates, colloids, algae and visible matter, reducing water turbidity |
| - | Filter Valve Head | Model: 71P1
|
Piece | 1 | Zhejiang |
The same as above.
|
| - | Central Pipe | Size: φ5.3*1.4m
|
Piece | 1 | Zhejiang |
The same as above.
|
| - | Water Distributor | 6-point mushroom head type | Set | 1 | Xinghua |
The same as above.
|
| - | Quartz Sand | Spec: 6-8mm
|
Kg | 32 | Jiangxi |
The same as above.
|
| - | Filter Cartridge | Spec: 5μpp
|
Piece | 5 | Shanghai |
The same as above.
|
| RO Main Unit | High-Pressure Pump | Brand: Xinjie PLD2-6 | Unit | 1 | Hangzhou | Pressurizes water passing through the multi-media filter to ensure the pressure required for the RO unit |
| - | RO Membrane Housing | Model: 4040
|
Piece | 1 | Fujian | Holds the RO membrane |
| - | RO Membrane | Model: 4040
|
Piece | 2 | - | Core filtration component |
| - | Inlet Solenoid Valve | Model: DN20
|
Piece | 1 | Yuyao | Controls pipe water intake during the operation of the water purification system |
| - | Wastewater Solenoid Valve | Model: DN20
|
Piece | 1 | Yuyao | Controls wastewater discharge during RO membrane flushing |
| - | Low-Pressure Switch | Model: BD-A3
|
Piece | 1 | Taiwan (China) | Low-pressure protection |
| - | High-Pressure Switch | Model: BD-A30
|
Piece | 1 | Taiwan (China) | High-pressure protection |
| - | Pressure Gauge | Model: 10kg | Piece | 1 | Shanghai | Displays pipeline pressure |
| - | Pressure Gauge | Model: 30kg | Piece | 4 | Shanghai | - |
| - | Regulating Valve | Model: DN25
|
Piece | 2 | Zhejiang | Adjusts water volume and cuts off water supply |
| - | Panel Flowmeter | Spec: 20 Gallon
|
Piece | 2 | Yuyao | Displays real-time water flow |
| - | Conductivity Meter | Model: CCT3320 | Set | 1 | Shanghai | Displays real-time online purified water conductivity |
