Guangdong Taijin Intelligent Equipment Co., Ltd.
GuangDong-JiangMen, ChinaModel

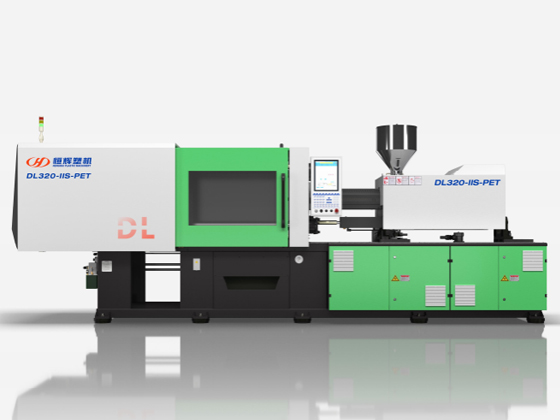

DL320-IIS/2180-PET
Injection Unit
:
Screw diameter (mm)
75
Screw L/D ratio (L/D)
23
Screw stroke (mm)
340
Injection volume (cm³)
1501
Injection weight (PET) (g)
1864
Theoretical Injection rate (g/s)
365
Injection pressure (Mpa)
145
Theoretical Plasticizing rate(PET) (g/s)
77.3
Screw speed (rpm)
141
Glue melting method
Oil motor
Clamping Unit
:
Clamping force (kN)
3200
Mold opening stroke (mm)
600
Dist. between tie bars (hxV) (mm)
690x680
Template size (HxV) (mm)
960x960
Max distance of template opening (mm)
1260
Max mold height (mm)
600
Min mold height (mm)
220
Ejector stroke (mm)
220
Ejector tonnage (kN)
99
Others
:
Pressure of systm (Mpa)
17.5
Pump motor power (kw)
47.2
Heater power (kw)
28.8
Machine dimension (LxWxH) - m
7.2x1.7x2.3
Machine weight - T
11.5
Oil tank - L
630
Direction valveYUKEN --- Japan
Glue motorDanton --- China
Hydraulic oil pump - Gear pumpFirst --- China
High-pressure oil pipeAEROQUIP --- America
ComputerEST --- China
Servo driverMODROL ----China
Servo motorMODROL ----China
Mould PlateMaterial: QT-500-7A --- China
Guide postMaterial:40Cr --- China
Screw, Machine barrelMaterial: 38CrMoAlA --- China
Limit switchHONEYWELL --- America
Proximity switchLeuze --- Germany
AC contactorSchneider --- France
Thermal relaySchneider --- France
Control switchSchneider --- France
Electronic rulerGEFREN --- Italy
Pressure sensorGEFREN --- Italy
Sealing partSEALTECH --- Hong Kong
