This Series of Labeling Machines
This series of labeling machines has a wide range of applications. It is suitable for circumferential labeling of OPP films, pearlescent films, paper-plastic composite films, and paper labels on the surfaces of cylindrical containers such as round ones — including plastic bottles, glass bottles, and metal cans used in industries like washing products, beverages, mineral water, and food. Due to the adoption of non-shrinkable materials, the printed patterns on the labels will not be deformed, which ensures the aesthetics of product packaging while significantly reducing the cost of packaging materials.

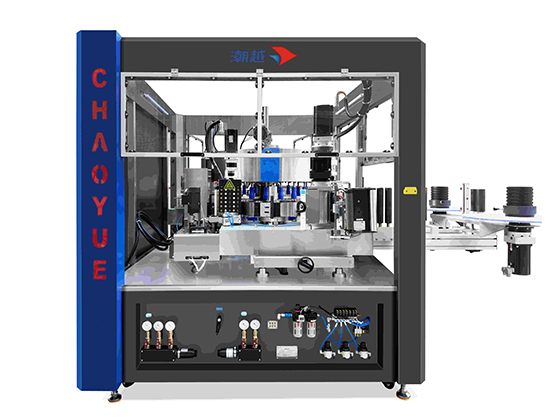

CY-XR24 Automatic Rotary High-Speed Hot-Melt Adhesive Labeling Machine - Main Performance Overview:
● The production speed can reach 38,000 bottles per hour, and it can be connected to the filling line for production, greatly increasing the production speed and saving costs.
● Designed with 24 stations, the bottle infeed and outfeed are in a straight line.
● Intelligent label missing alarm function.
● Intelligent deviation correction function, which controls the labeling error within ±1mm.
● Independently developed intelligent program: when there is a lack of bottles during production, there is no need to stop the machine; the machine will automatically operate when bottles are supplied. This avoids equipment damage caused by frequent start-ups and also reduces energy consumption.
● Adopts imported Schneider servo motor and Siemens PLC control, featuring simple operation, stable and reliable operation.
● Full-servo electronic gear system, and uses screws and star wheels to coordinate bottle infeed and outfeed, ensuring smooth and stable product infeed and outfeed during high-speed operation.
● The label conveying part (i.e., the label station) includes constant tension control, deviation correction mechanism, traction mechanism, label suction rotating hub (label cutting), labeling rotating hub, and gluing mechanism.
● The gluing part includes a glue pump, gluing table, and glue circulation system.
● The bottle pressing head can be electrically lifted and lowered; when replacing products of different heights, adjustments can be made on the human-machine interface, enabling convenient operation.
● Safety clutch design for the bottle infeed and outfeed star wheels: the machine automatically stops and alarms when a bottle is jammed.
● The entire machine is equipped with a safety shield; the machine automatically stops when the safety door is opened.
● Designed with 24 stations, the bottle infeed and outfeed are in a straight line.
● Intelligent label missing alarm function.
● Intelligent deviation correction function, which controls the labeling error within ±1mm.
● Independently developed intelligent program: when there is a lack of bottles during production, there is no need to stop the machine; the machine will automatically operate when bottles are supplied. This avoids equipment damage caused by frequent start-ups and also reduces energy consumption.
● Adopts imported Schneider servo motor and Siemens PLC control, featuring simple operation, stable and reliable operation.
● Full-servo electronic gear system, and uses screws and star wheels to coordinate bottle infeed and outfeed, ensuring smooth and stable product infeed and outfeed during high-speed operation.
● The label conveying part (i.e., the label station) includes constant tension control, deviation correction mechanism, traction mechanism, label suction rotating hub (label cutting), labeling rotating hub, and gluing mechanism.
● The gluing part includes a glue pump, gluing table, and glue circulation system.
● The bottle pressing head can be electrically lifted and lowered; when replacing products of different heights, adjustments can be made on the human-machine interface, enabling convenient operation.
● Safety clutch design for the bottle infeed and outfeed star wheels: the machine automatically stops and alarms when a bottle is jammed.
● The entire machine is equipped with a safety shield; the machine automatically stops when the safety door is opened.
