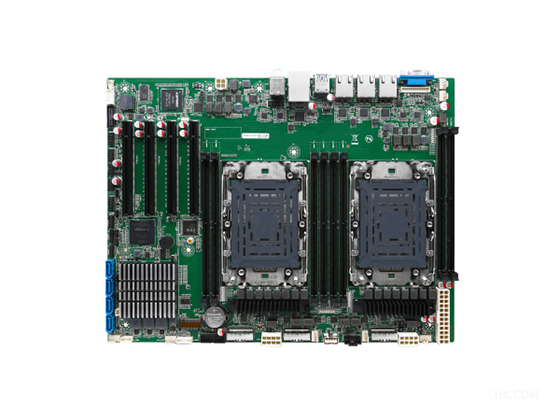

SER-4251
Dual 4/5th Gen Intel Xeon Scalable CPU, 4*PCIe x16, 4*GbE, 3*Slim-SAS 8i
-
Support Dual 4/5th Gen Intel Xeon Scalable CPUs with C741 chipset
-
8*DIMM, up to 512GB Memory, support ECC
-
4*GbE, 4*PCIe x16, 1*M.2
-
4*SATA 3.0, 3*Slim-SAS 8i
Home/Accessories/Consumables/Electrical/Servo system/ C740 series---SER-4251/
Shenzhen Seavo Technology Co.,Ltd.
, ChinaGeneral
:
CPU
Dual 4/5th Gen Intel® Xeon® Scalable Processor, Socket FCLGA4677
Chipset
Intel® C741 Chipset, 11W
Memory
DDR5-4800, 8*ECC RDIMM, up to 512GB
Storage
4*SATA 3.0
Storage
1*M.2 (Key-M, PCIe x4 NVMe SSD, 2280)
Storage
1*Slim-SAS 8i (Dual 2*PCIe x4/ SATA SSD)
Storage
2*Slim-SAS 8i (Dual 2*PCIe x4)
Expansion Interface
4*PCIe x16 Gen5
BIOS
AMI UEFI BIOS
System
Linux, Windows Server 2019/2022, Windows10
TPM
SLB9670VQ2.0, TPM2.0 onboard

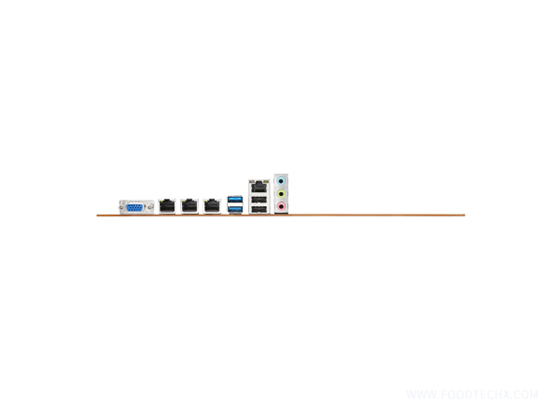

I/O Interface
:
Ethernet
3*Intel® 2.5Gbps Ethernet Controller, RJ45
Ethernet
1*Intel® 1Gbps Ethernet Controller, RJ45, IPMI
Serial
2*RS232
USB
4*USB 3.0, 8*USB 2.0
Audio
Realtek® 5.1 channel HDA Codec, with MIC/Line-out/Line-in
Others
1*GPIO Header, 1*PS/2 Header (Keyboard & Mouse)
Others
1*SMBUS, 1*ESPI, 1*PMBUS, 7*Smart FAN
Display:
Display Interface1*VGA: max resolution up to 1920*1200@60Hz
Mechanical & Environment :
Dimension305*244mm
Power InputATX PSU
TemperatureOperation: 0℃~60℃, Storage: -20℃~75℃
Relative HumidityOperation: 10%~90%, Storage: 5%~95%, non-condensing
