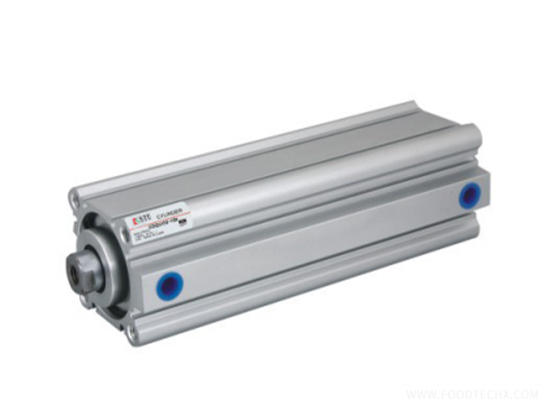

Keshangke Compact Cylinder (Long Stroke) CQ2 Series (Φ32~Φ100)
Model Designation
C D Q2 A 32 - 200 D C - A73| Code | Description |
|---|---|
| C | No Built-in Magnetic Ring |
| D | Built-in Magnetic Ring |
| Q2 | Series Code |
| A | Mounting Style: Both Ends Tapped Holes
|
| 32 | Bore Diameter: 32=Φ32mm, 40=Φ40mm, 50=Φ50mm, 63=Φ63mm, 80=Φ80mm, 100=Φ100mm |
| 200 | Stroke (See Table Below) |
| D | Double Acting |
| C | Rubber Cushioning |
| (No Mark) | Port Configuration: Threaded Port
|

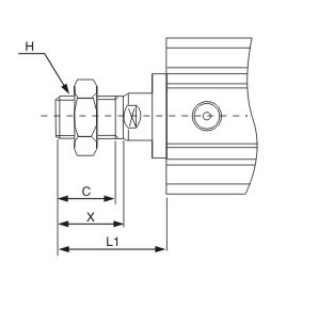

| (No Mark) | Optional: Standard (Rod End Internal Thread)
|
| A73 | Magnetic Switch Model
|
Stroke/Magnetic Switch Selection
| Bore Diameter (mm) | Standard Stroke (mm) | *Magnetic Switch Model | |
|---|---|---|---|
| Rail Mount | Direct Mount | ||
| 32 | |||
| 40 | |||
| 50 | 125, 150, 175, 200, 250, 300 | A73 | M9N
|
| 63 | |||
| 80 | |||
| 100 |
