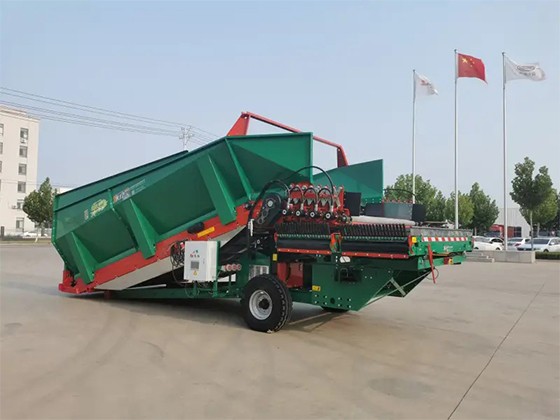

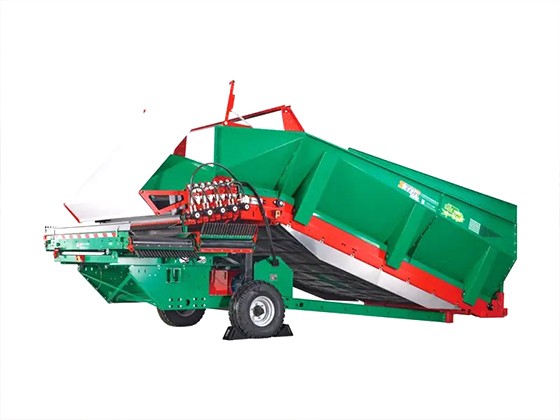

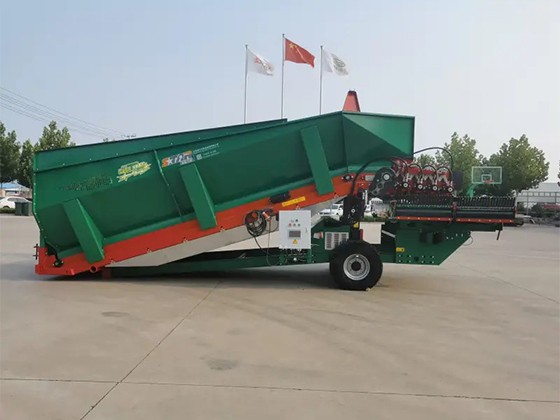

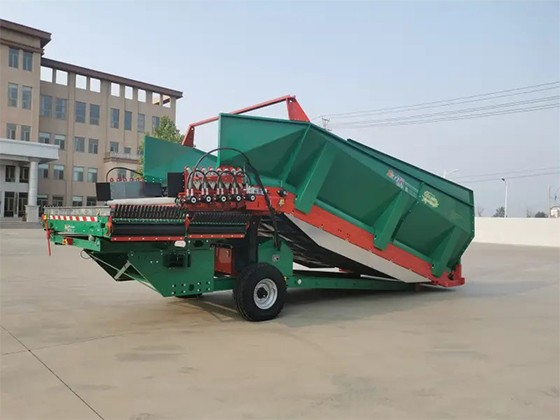

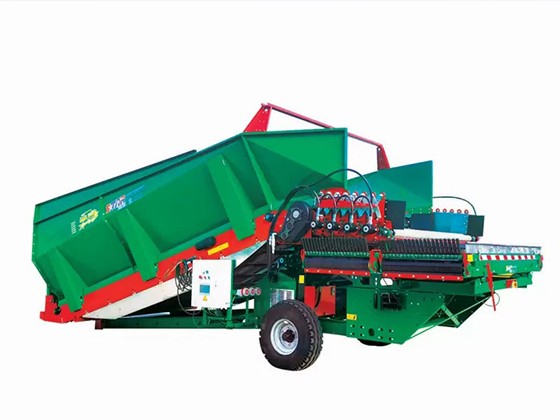

The Reliable Performance potato cleaning and conveying machine 5XF-80 is powered by an external AC380V power supply to drive the hydraulic pump station, which in turn drives the sorting roller motor, main conveyor motor, lifting motor, telescopic cylinder, and other hydraulic components. The flat conveyor belt at the discharge end is driven by a roller motor. The combination of a control handle and a human-machine interface touchscreen makes the equipment simple to operate and easy to adjust.

This Reliable Performance potato cleaning and conveying machine 5XF-80 is mainly used for cleaning and sorting potatoes after harvest. Its simple structure and convenient, adjustable operating system facilitate fault detection and troubleshooting. It is convenient, fast, efficient, has a high sorting accuracy, and a low potato damage rate. It features a compact structure, reliable performance, and simple maintenance.

Machine Structure:

The Reliable Performance potato cleaning and conveying machine 5XF-80 mainly consists of a receiving hopper, sorting device, debris conveying device, large potato conveying device, flat conveyor belt base, hydraulic system, electrical system, base assembly, main conveyor device, and traction frame.

Working Principle:

For short-distance transportation, the Reliable Performance potato cleaning and conveying machine 5XF-80 is moved to the work site using a tractor or other towing equipment.

Before operation, check the equipment lines connected to the cleaning conveyor. After confirming that the entire sorting line is properly connected, start the cleaning conveyor for testing. After the potatoes are harvested in the field, transport vehicles or other mechanisms spread the material onto the receiving hopper of the cleaning conveyor. The main conveyor moves forward to the sorting device (at this time, the sorting device has already adjusted the gap according to the size of the potatoes to be sorted).

Smaller potatoes, small stones, clods of soil, and broken soil fall into the gap between the sorting rollers and onto the debris conveying device. The debris conveying device then transports the sorted debris/small potatoes to the corresponding receiving device. The remaining larger potatoes continue to be conveyed forward, and the large potato conveying device transports the material to the rear connection device, where it is collected and transferred by the user to the warehousing or processing stage. The entire machine operation is now complete.

Advantages：

1. Automatic frequency control, high efficiency and energy saving. The Reliable Performance potato cleaning and conveying machine 5XF-80 can automatically control the conveying speed according to the potato flow input of the potato transporter.  It not only realizes the conveying is not congested, efficient and fast, but also reduces energy consumption, protects the machine and is durable.

 2. Automatic sorting, high commodity rate. The potatoes reach the top of the hopper through the conveyor belt. While removing the clay on the potato skin, the potatoes are sorted according to their sizes and entered into different transportation channels. At the same time, the sundry items are separated in the small potato channel, so that the potatoes can be stored and sold in different grades according to their sizes.

3. Flexible sorting, size controllable.  The potato sorting device can control the size of potato sorting by adjusting the gap size, and the sorting grade is flexible and controllable.

4. Gentle soil cleaning, do not hurt potato.  The potato sorting device at the top of the hopper adopts special elastic material, which ensures the gentle removal of clay on the potato surface and does not hurt the potato at the same time.

5. Consistently high and precise separation performance of up to 90%. Far less staff are required to check for waste products and therefore this allows for considerably lower labour costs.

Parameters:
