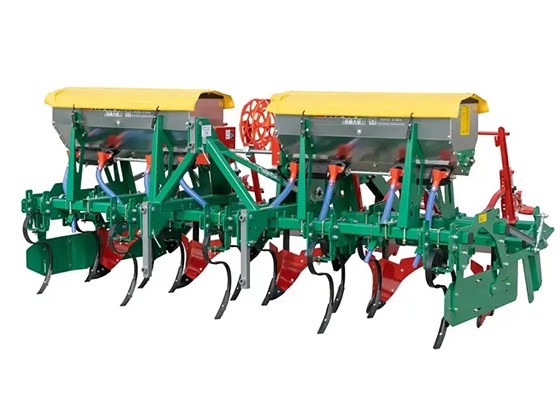

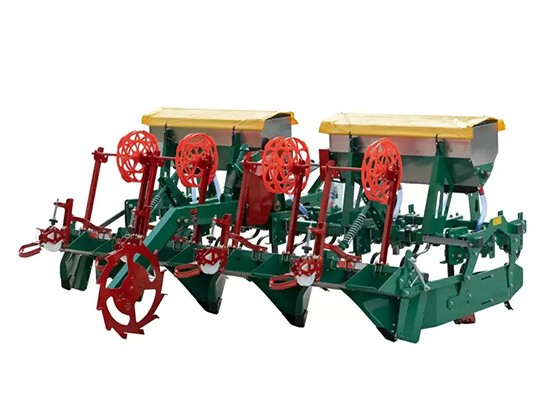

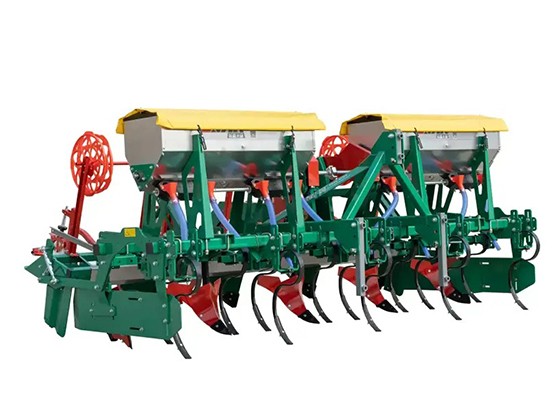

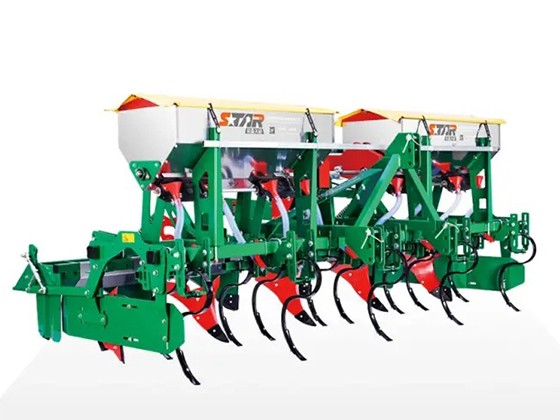

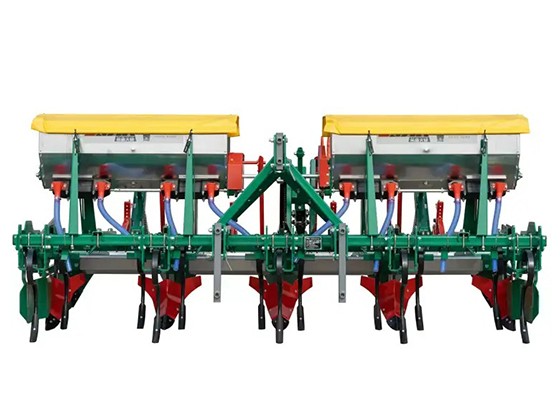

3ZMP-360 Potato cultivating soil fertilizing machine is an agricultural machinery used in potato cultivating soil, which It can complete soil loosening, weeding, ridge building, top dressing and other operations at one time, while also having the functions of increasing ground temperature and preserving moisture.

Structural features:

1、The machine frame adopts double beam rectangular frame structure, strong strength, good rigidity, no deformation;

2、This 3ZMP-360 Potato cultivating soil fertilizing machine uses the S-curved elastic shovel, which enhances the elasticity of the shovel so that the hard objects (such as stones) in the soil can be destroyed to the lowest of the whole machine.

3、The machine is cultivated by the soil of the soil into a trapezoid, by adjusting the soil and the ground angle can be adjusted ridge height and ridge width;

Applicable scope

The 3ZMP-360 Potato cultivating soil fertilizing machine for 90 cm ridge distance, the ridge height between 25 to 30 cm, and the ridge around the length of about 110 cm of potato cultivation ridge ridge operations. Its operation requires soil moisture content of not more than 25%, the proposed operating speed of 4 to 6 km per hour.

The main process flow is as follows:

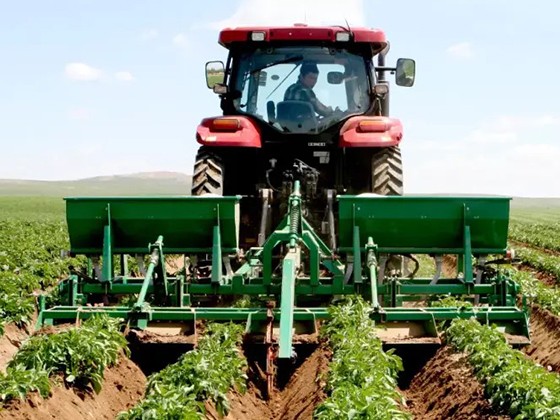

The tractor pulls the potato cultivating soil and fertilizer applicator forward along the direction of the potato ridge - the fertilizing wheel drives the fertilizing box to start fertilizing - the small elastic teeth loosen the soil and remove weeds - the soil loosening device loosens the soil and divides the soil to both sides - the former piles the separated soil into ladder-shaped ridges.
