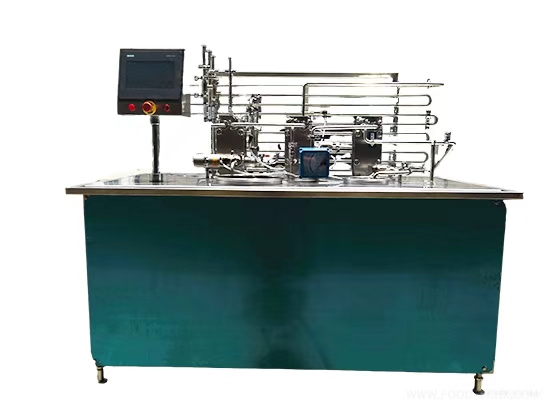

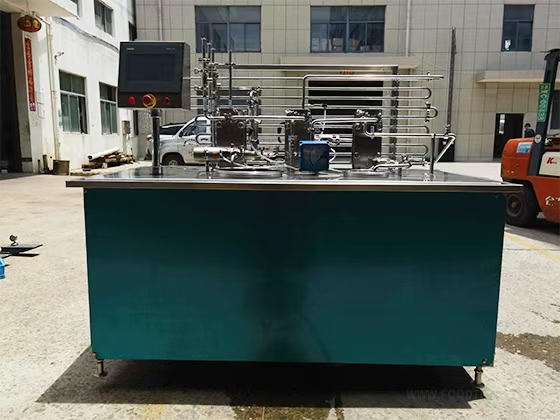

0.2T/H Plate Heat Exchanger Complete Equipment List and Basic Parameters
Process Parameters : 4℃ Feed -> (75℃) Sterilization (20S) -> (4℃) Filling
Home/Food Processing Equipment/0.2T/H Plate Heat Exchanger Complete Equipment/
Zhejiang Nuanbao Light Industry Machinery Co.,ltd
, China1.
Pasteurizer
Model
BTG7B-16
Plate Heat Exchanger
Complete set : 1 set (Nuanbao)
Design Flow Rate
0.2 t/h (Adjustable)
Heat Exchange Area
2.9 m² (316L Stainless Steel)
Pressure Resistance
2.0 Mpa
Total Installed Power
Total Installed Power
Overall Dimension
2000×1500×1800 mm
Equipment Weight
600 Kg
2.
Product Medium Condition
Pasteurization Temperature
75℃ (Adjustable)
Holding Time
20 s
Product Outlet Filling Temperature
4℃ (Adjustable)
3.
Compressed Air System
Compressed Air Working Pressure
0.6 MPa
Compressed Air Consumption
0.3 m³/min
4.
Ice Water System
Ice Water Working Pressure
0.3 MPa
Ice Water Inlet Temperature
≤ -2 ℃
Ice Water Consumption
0.45 t/h
5. Frame Platform
Frame Type : Stainless Steel Square Tube : 50×50×2 – 100×50×3 (Nuanbao)
6. Insulation Pipe SizeStainless Steel Pipe (Nuanbao)
7. Product Pipeline Diameter
Male Thread Connection :Stainless Steel Pipe : Φ19×1.2 (316L Stainless Steel)
8.Hot Water Pipe Diameter
Male Thread ConnectionStainless Steel Pipe : Φ19×1.2
9.Ice Water Pipe Diameter
Male Thread ConnectionStainless Steel Pipe : Φ19×1.2
10.Compressed Air Pipe Diameter
Plug-in ConnectionHose : Φ6×1
11.Centrifugal Pump : Q=1T/H, H=36m
Multistage Centrifugal Pump 0.75 kW - 1set Nanfang (CNP)
12.Hot Water Pump : Q=1T/H, H=36m
Multistage Centrifugal Pump0.75 kW - 1set Nanfang (CNP)
13.Valve : SRC-21NO
2-Position 3-Way Pneumatic Cut-off / Diverter ValveΦ16 - 1set (Yuanan)
14.Valve
Pneumatic Rotary Butterfly ValveΦ16 - 1set (ABO)
15.Valve
Pointer Type Flow MeterDN19 (Jiangsu)
16. Valve
Electromagnetic Flow MeterΦ12 - 1set (Shanghai)
17.Electric Heating Hot Water System
Hot Water Tank40L - 1set
P-6 : Heating Rod / Heating Element1set
P2209 : Platinum Thermal Resistance2 PCS （Hangzhou）
WSS-12 : Sheathed Bimetal Thermometer0-150℃ ： 2 PCS （Hangzhou）
18.Electric Control Cabinet
10 inch Color Touch Screen1set （Siemens）
PLC Programmable Logic Controller1set （Siemens）
Output Expansion Module2 sets （Siemens）
Temperature Measuring Expansion Module2 sets （Siemens）
Frequency Inverter 0.75 kW
Paperless Recorder1set （Yokogawa）
Platinum Thermal Resistance7 sets （Siemens）
Temperature Controller1set Fuji (Japan)
Solenoid Valve3 sets （Taiwan）
