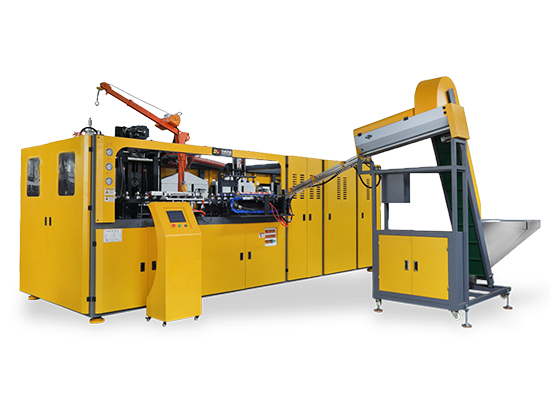

Home/Packaging Material Equipment/Bottle blowing machine/PET/1-Out-6 Fully Automatic Bottle Blowing Machine---MW-SS6000 /
TAIZHOU HUANGYAN MAIWEI MACHINERY CO. ,LTD
, ChinaModel
MW-SS6000
Number of cavity
6 cavities
Clamping unit
56000 kg
Mold stroke
90 mm
Stretching stroke
260 mm
Bottom stroke
50 mm
Cavity pitch
76.2 mm
Number of holder
126 pcs
Max.container volume
600 ml
Max.container height
260 mm
Max.container diameter
68 mm
Max.preform height
100 mm
Max.neck diameter
38 mm
Theoretical
9000 B/H
Heating oven qty
5*5 PCS
Number of lamp
5*8 PCS
Heating power
64 KW
Installed power
69.5 KW
Voltage
Customisation
Operating pressure
0.7-0.9 mpa
Blowing pressure
2.5-3.0 mpa
High pressure air consumption
5.0/30 L/min
Power
60 KW
Chiller System - Power
8 HP
Machine dimensio
4.8x2.1x2.5 M
Machine weight
6000 KG
Embryo loader size
2x1.2x2.7 M
Contactor Germany Siemens
Computer Touch Screen (PLC) Jiangsu, China Xinjie
Mold Clamping Servo Motor Jiangsu, China Xinjie
Stretching Servo Motor Jiangsu, China Xinjie
Shifting Servo Motor Jiangsu, China Xinjie
Preform Loading Servo Motor Jiangsu, China Xinjie
Servo Reducer Taiwan, China Liming
Throttle Valve Taiwan, China AirTAC
Action Valve South Korea ARK
High-Pressure Blowing Valve France Norgren
Preform Pressing Cylinder Japan SMC
Preform Loader Manipulator Lifting Cylinder Japan SMC
Preform Loader Manipulator Moving Cylinder Japan SMC
Preform Loader Manipulator Rotating Cylinder Japan SMC
Preform Unloader Manipulator Rotating Cylinder Japan SMC
Manipulator Pneumatic Gripper Taiwan, China AirTAC
Sealing Cylinder Taiwan, China Lingde
