Fermentation tank, is made of stainless steel 304. You may also heard some other names as conical fermenter, fermentation vessels, Unitank, or even FV, made by 304 sanitized stainless steel, 100% TIG Welding, is the key part to hold wort after brewing and turns it into beers in days.

A fermentation tank is a kind of vessel in the equipment used to make beer. After the wort comes out of the brewing system, it enters the fermentation tank. The fermentation tank provides a good and satisfactory environment for the aerobic and anaerobic reaction of yeast, and plays a vital role in the process of beer making. Therefore, the fermenter occupies a very important position in the fermentation system.

Fermentation vessels are an important part of every brewery, from the smallest home brewery setup to the largest commercial brewery enterprise.

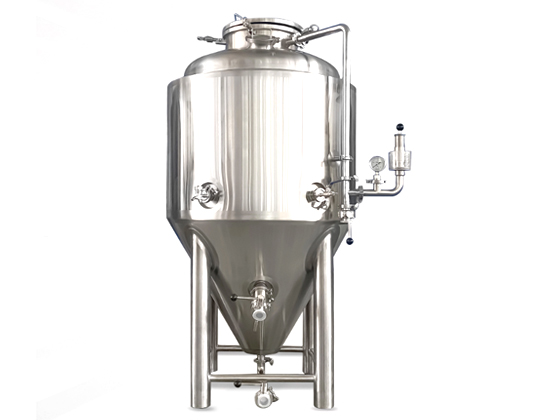

Side Manway (M-Series) Conical Fermenter, is built for those industrial breweries who will ferment beers with  volume from 500L to 5,000L(max to 50BBL).

With the Standard fully polished 304 stainless steel material, it has all standard sanitary welded tri-clamp fittings and CIP arm. There are also some more advanced add-on features, pick up the one which suitable for your current stage, we are your one-stop brewing store.



1. Effective volume = 1000L, with extra 25% head space. Total volume = 1250L;

2. Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire;

3. Inner layer=3mm, pickling and passivating treated;

4. outer layer=2mm, Hairline polishing;

5. Dimple glycol cooling jacket;

6. PU Insulation layer=80mm on side and cone bottom;

7. Design pressure 0.3MPa; Working pressure 0.15Mpa;

8. 60°Conical Cone bottom;

9. 4 x heavy duty legs with leveling foot pads;

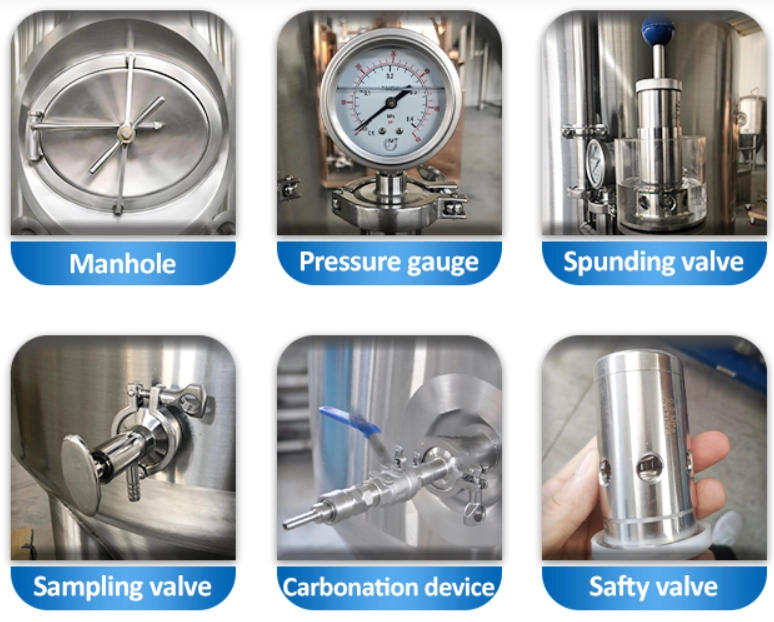

• It comes with:

1. Side manway, shadow-less

2. CIP arm with internal 360°spray ball

3. Lifting lugs

4. Pressure relief valve

5. Pressure Gauge

6. Temperature Gauge

7. Sample valve

8. Beer outlet on cone

9. Bottom drain port

10. PT-100 Temperature sensor

11. Complete fittings, valves

• You can also upgrade your fermentation tank with below options:


1. Additional CO2 Blow off pipeline

2. Carbonation Port & fittings

3. Top mounted dry hops adding port

4. Glycol water pipelines to fit your brewery layout
