ShanDong-JiNan, China200L Brewhouse 2024 New Design
New Design of 200L micro brewhouse, valve trees besides each tank makes your brew day easier.

It is equiped with an individual platform in the middle, which is an excellent working center for brewers. Super convenient to operae the entire process between tanks. INLlNE valve trees are all reachable, makes your brewday much easier. Wonderful features and design, it would be the best choice for your brewpub.
If you are in the process to schedule your unique brewery project, please feel free to send message to us, Carry Brewtech team is looking forward to providing more support to your business. Cheers!Nominal volume
200L
Max volume
:
Mash/Lauter tank
290L
Kettle/Whirlpool Tank
290L
Hot water tank
290L
Dimension (L*W*H)
3*1.77*1.75m
Gross weight (kg)
700kg
Electric power
:
Mash/Lauter tank
Optional: RIMS / HERMS (TBD)
Kettle/Whirlpool Tank
12KW
Hot water tank
12KW
Wort pump
1000L/h, VFD speed controlable
Hot water pump
1000L/h, on/off control (optional: VFD speed control, TBD)
Max power load
26KW
Working voltage
Standard: 380V, 50HZ,3phases (customized, TBD)
Layout dimension7m x 5m = 35m2
Monthly production capacity1600L~3200L (depends on the quantity of fermenters, TBD)
Max electric power in Kw29kw
Water consumption350 Liters water used per batch
Time consumption6~8 hours per batch

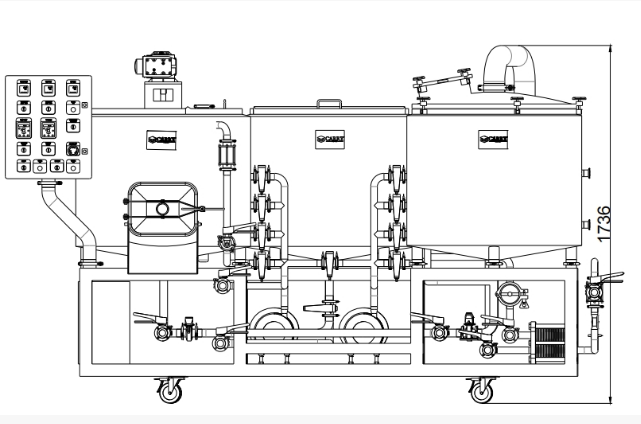

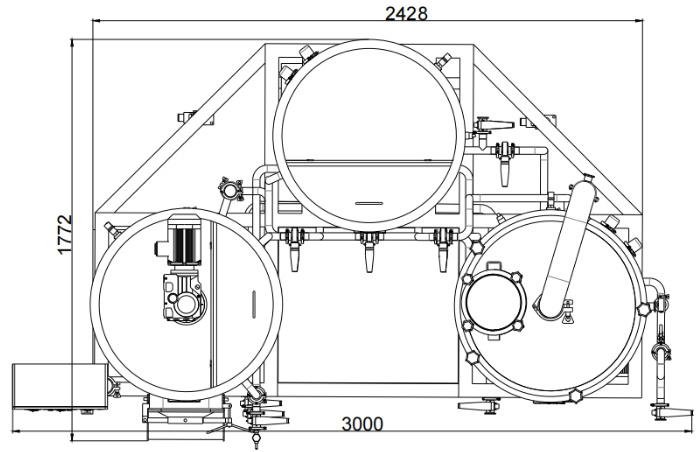

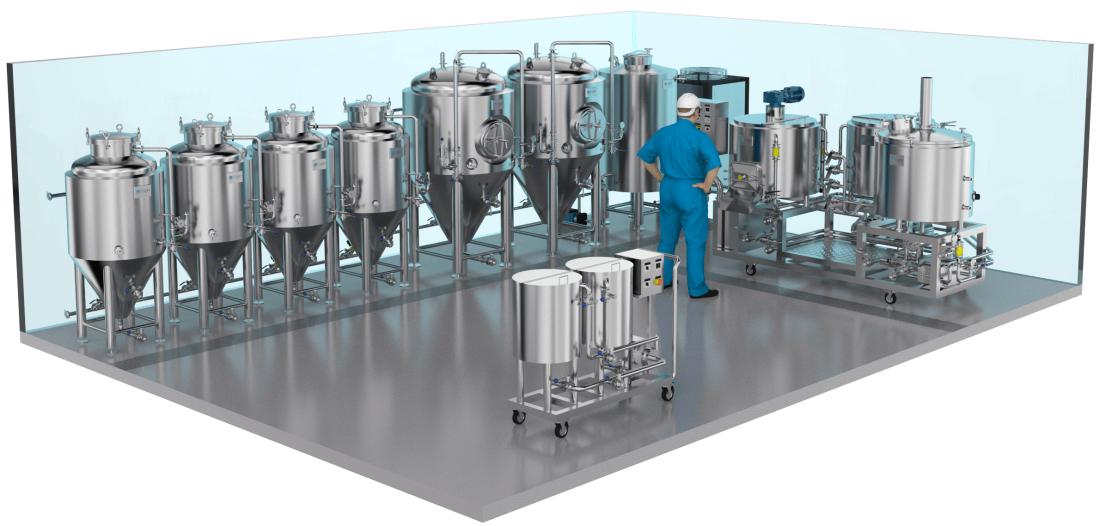

- DESIGN SKETCH

- DESIGN SKETCH

- DESIGN SKETCH

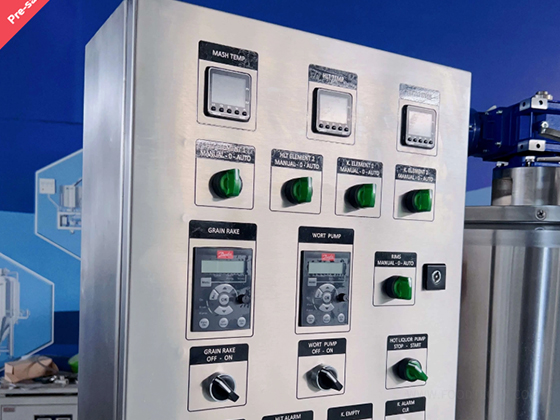

- Easy operate control panel

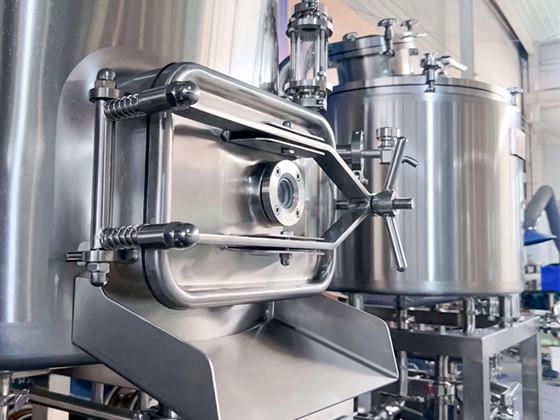

- vinasse door with chute

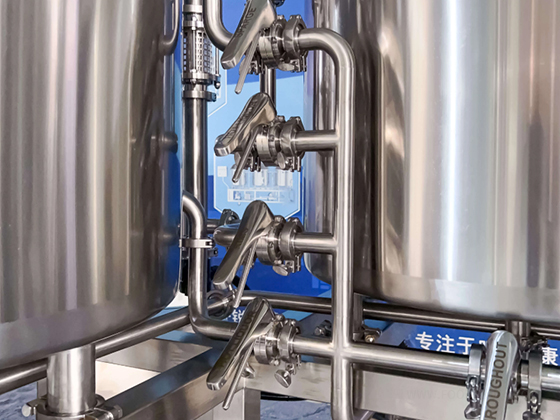

- Platform with valve trees
- Condensing lid on k/w tank

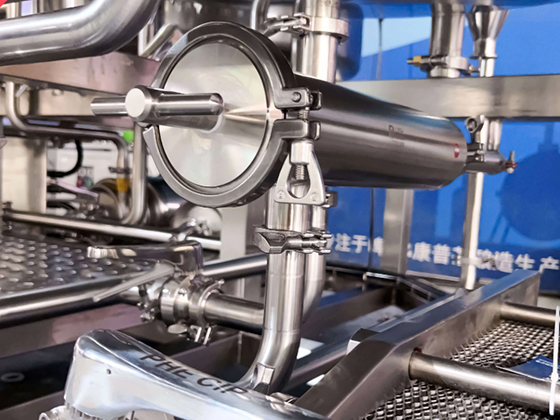

- Easy operate filter before PHE
- Cooling jacket on k/w tank
- Rake inside of mash/lauter tank
- Letter etched on valve handle
- Dual pump pre-installed
- Liquid level sensor
- Dual heating elements
- Pre-wired control cabinet
