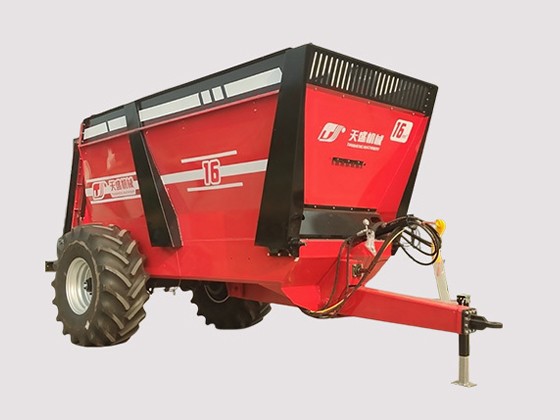

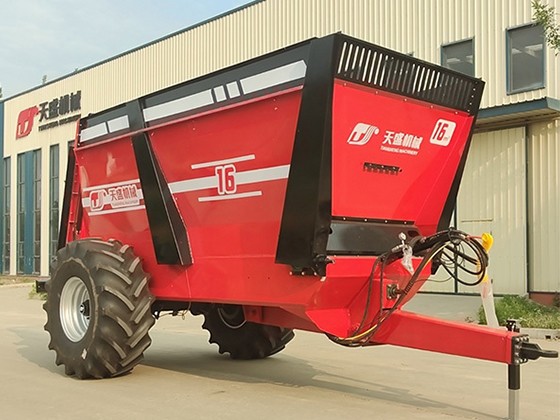

Tiansheng Machinery 2FGH-13S Series Double Vertical Spiral Fertilizer Spreader

Name: 2FGH-13S--- Series Double Vertical Spiral Fertilizer Spreader
Brand: Shandong Tiansheng Machinery Science and Technology Co., Ltd.
SKU: 9793fa36279e4fbf9399c22ed0d26159
Price: 8600 USD
Availability: InStock
Rating: 4.8 (20 reviews)

Tell Us What You Need

History search

Fuzzy search

Shandong Tiansheng Machinery Science and Technology Co., Ltd.

Tiansheng Machinery 2FGH-13S Series Double Vertical Spiral Fertilizer Spreader

Model

2FGH-13S Fertilizer Spreader

Structural Type

Box Type

Operation Method

Rear Throw

Hopper Inner Dimensions (Length × Width × Height)

Upper Length × Width: 43202020 Lower Length × Width: 40201500 Height: 1700 mm

Hopper Capacity

13 m³

Maximum Payload

12000 kg

Matched Power Value (Range)

70-85 kW

Spreading Device Type

Vertical Double Helix Spreading

Fertilizer Conveying Method

Hydraulic Chain Plate Push

Spreading Width

≥8 m

Number of Load-bearing Axles

1 pcs

Track Width

2180 mm

Tire Specification

IF600/70R30CFO

Number of Tires

2 pcs

Product Description

Technical Parameter
