Features:
1. Pilot piston structure, low power consumption.
2. Long service life of seals in steam environments.
3. Suitable for pipeline systems that operate for extended periods.

Media:
Steam, hot water, oil, etc.
Fluid temperature:
PTFE: -60°C to 200°C
FKM: -30°C to 150°C

Pressure:
2L: 0.03MPa to 1.6MPa

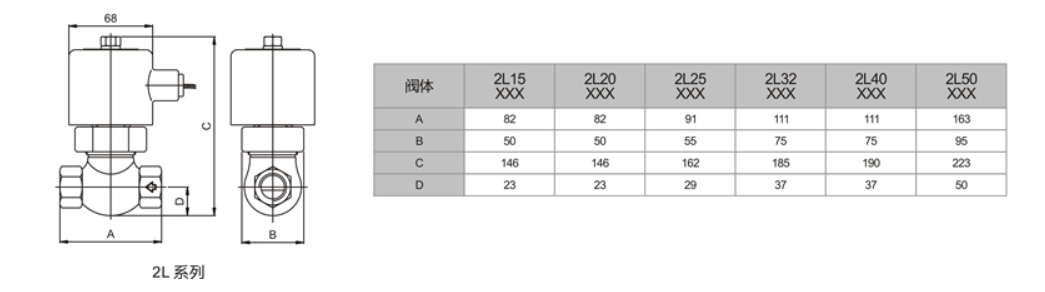

Connection sizes:
1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Thread:
G thread, NPT thread
Bore (mm): 15, 20, 25, 32, 40, 50
2L

Voltage:
DC - 12V, 24V
AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Range:
±10%

Coil:
Y42H, 50VA (AC), 20W (DC), Ip65, 100% ED

Materials:
Valve body - Copper
Seals - PTFE, FKM
Magnetic shielding tube - Stainless steel 304
Moving core - Stainless steel 430F
Stationary core - Stainless steel 430F
Spring - Stainless steel 304
