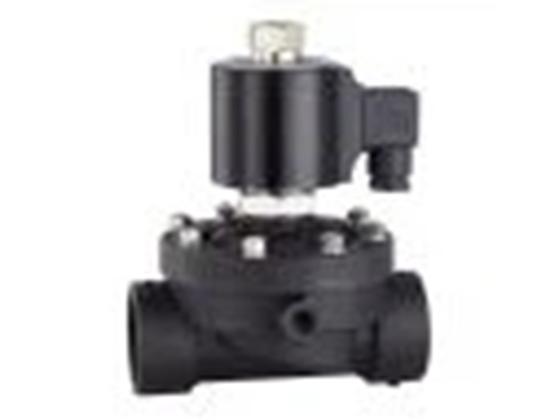

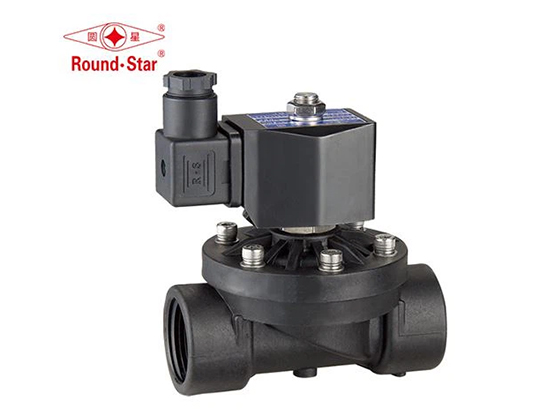

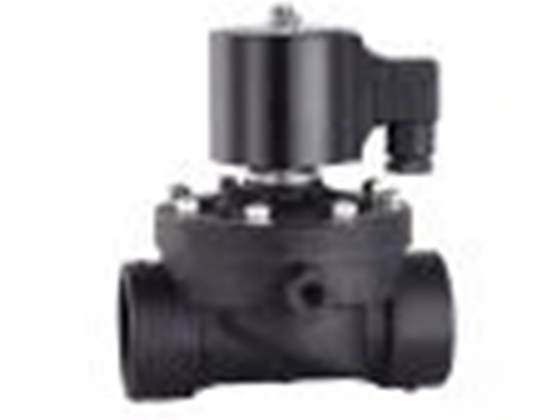

Home/Water Treatment Equipment/2W-SL series 2-wayzero differential pressure plastic solenoid valve1/2" ~2'/
Yuyao No.4 Instrument Factory
, China
Working medium:
water, liquid, gas
Ambienttemperature:
-20℃-+65℃℃
Fluid temperature:
-10-+80℃
Working pressure:

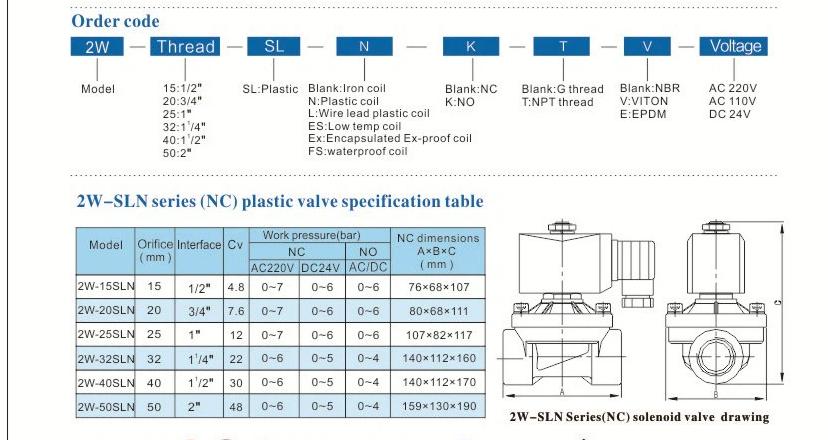

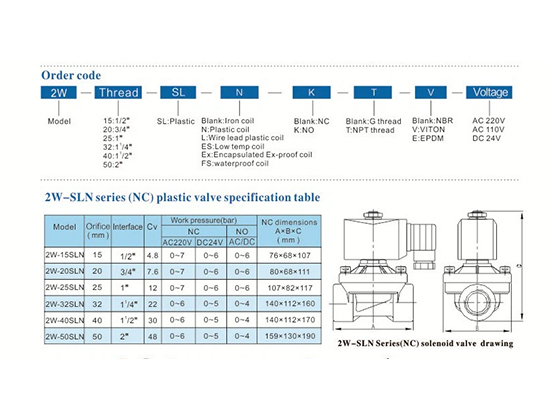

0~7bar(See the table below for details)
Working type:
semi-direct acting (NC, NO)
body material:
PA66 (made in Germany)
Sealing material:
NBR(fluid temperature -10~80℃℃)
Interface thread:
G thread, NPT thread Working Volatge: DN15-20:AC220V20VA
Working voltage:
DN15-20:AC220V20VA,DC24V20WDN25:AC220V40VA,DC24V30W。DN32-50:AC220V 30VA,DC24V 38WIP65 Hdegree
Options:
ES low temp coil(DN10~20mm AC220V Start64VA,hold4VA,DC24V Start38W, hold4WDN25mm AC220V Start 106VA,hold5VA,DC24V Start54W,hold8W Ambienttemperature:-20℃-+65℃℃Working pressure:0~7bar(See the table below for details)Body material: PA66 (made in Germany) DN32-50mm AC220V Start140VA,hold8VA,DC24V Start54W,hold8W)lP65Ex encapsulated explosion-proofcoi(DN10-25mmAC220V Start90VA, hold7VA,DC24V Start55W, hold5WDN32-50mm AC220V Start140VA,hold9VA,DC24V Start54W,hold8W)IP65
Product Description
Technical Parameter
Technical Drawing
Tell Us What You Need
