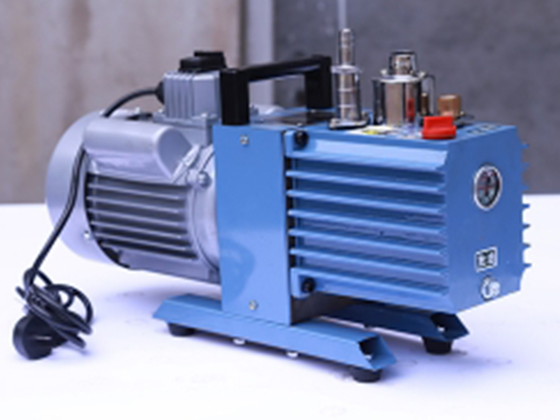

Home/Accessories/Consumables/Mechanical/Pump/2XZ-0.5---direct coupled rotary vane vacuum pump/

Lin Hai Yong Hao Vacuum Equipment Co., Ltd.
, ChinaModel
2XZ-0.5
Pumping speed (L/S) m2/h
0.5
treme pressure (P
:
Partial pressure
≤6x102
Full pressure
≤1.33
speed (r/min)
1400
working voltage (V)
220
Motor power (Kw)
0.18
Inlet diameter (outside diameter) (mm)
φ20
Inlet diameter (outside diameter) (mm)
KF-16
noise(dBA)
65
Oil capacity(L)
0.6
Pump oil temperature rise( C)
40
Outline dimension(mm)
440X140X240
Gross weight / net weight (Kg)
17/16

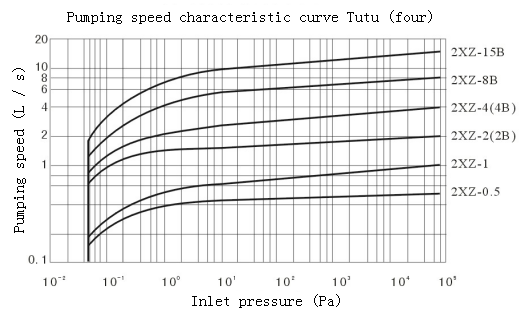

- Pumping rate curve

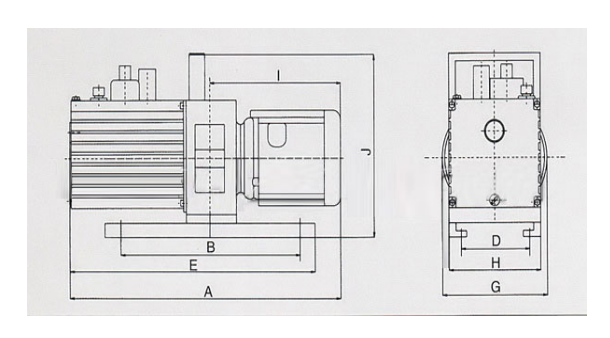

- Mounting dimensions

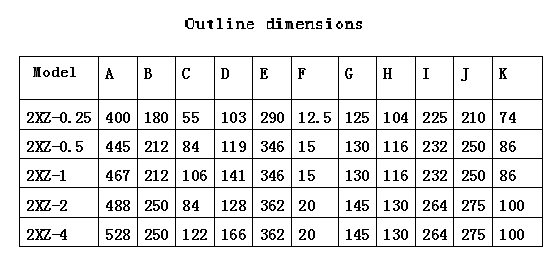

- Outline dimensions

Product Description
Technical Parameter
Technical Drawing
