Taizhou Quanju Machinery co., Ltd.
, China1、 Machine characteristic:
-
After blowing the bottle will automatically ejected from mould, no need worker to take the bottle can avoid worker injury during machine operation.
-
Preform reheated adopt hanging infrared lamps reheat design, center distance of the preform when reheated small so the speed for reheat will be faster, can safe electricity about 30% compare to market similar machine. Infrared lamps wave can pass through the inside the preform, so the inner and outer of the preform can get the same temperature can ensure the bottle get a perfect transparency and good appearance.

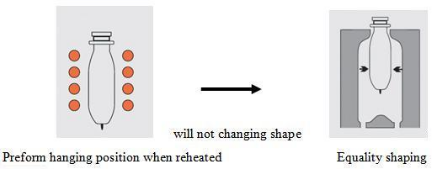

Fully automatic blowing machine preform hanging position reheated design
TYPE
E300
END PRODUCT
:
Material
PET
Max.Volume
1.5 L
Theoretical output
2000-2500 Pcs/h
MAIN MACHINE ELECTRICITY
:
Power
27 Kw
Voltage/Frequency
380/50 V/HZ
MACHINE SIZE AND WEIGHT
:
Main body dimension(L×W×H)
2.32 × 1.6 × 2.3 M
Main body weight
2200 kg
Preform Conveyor dimension (L×W×H)
1.86 x 1.23 x2.3 M
Preform Conveyor weight
300 kg
Bottle conveyor dimension(L×W×H)
2.2x 0.55 x 1.3 M
Bottle conveyor weight
100 kg
Computer Controller Siemens (Germany)
PLC Siemens (Germany)
Closing magnetic valveFESTO (Germany)
Stretching magnetic valveFESTO (Germany)
Sealing magnetic valveFESTO (Germany)
Robot hand moving magnetic valveFESTO (Germany)
Preform catching magnetic valveFESTO (Germany)
Preform entering magnetic valveFESTO (Germany)
Clamping cylinderFS (China)
Photoelectric switchSICK (Germany)
Magnetic switchALIF (Taiwan, China)
