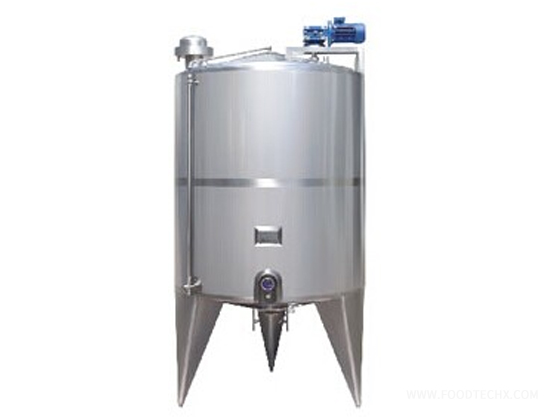

3000L Stainless Steel Insulated Mixing Tank
Home/Food Processing Equipment/Mixer/Homogenizer/3000L --- Stainless Steel Insulated Mixing Tank/
Henry Machinery (Foshan) Co., Ltd.
GuangDong-FoShan, ChinaUpper and lower heads
φ1600×4mm, SUS304
Tank body
φ1600×H1250×3mm, SUS304
4 tank legs
φ133×4mm×H350 (outlet height from ground), SUS304
Insulation bottom cover
φ1700×2mm, SUS304
Insulation tank shell
φ1700×H1250×2mm, SUS304
Insulation inclined sealing plate
φ1600–φ1700, SUS304
Observation sight glass
80×H400mm (2 pieces), SUS304
Sampling port
φ25 (tri-clamp type), SUS304
Insulation material
Polyurethane
Temperature measuring hole inside tank
With thermometer fitted
Motor, frequency converter & electric control box
4KW, 50rpm adjustable
Stirrer assembly
Two-layer impeller, SUS304
Top manhole
φ400 (quick-opening type), SUS304
Feed inlet
φ38 (tri-clamp type), SUS304
CIP rotary cleaning nozzle
φ32 (tri-clamp type), SUS304
Breather valve
φ38 (tri-clamp type), SUS304
Discharge outlet
φ38 (tri-clamp type), SUS304
