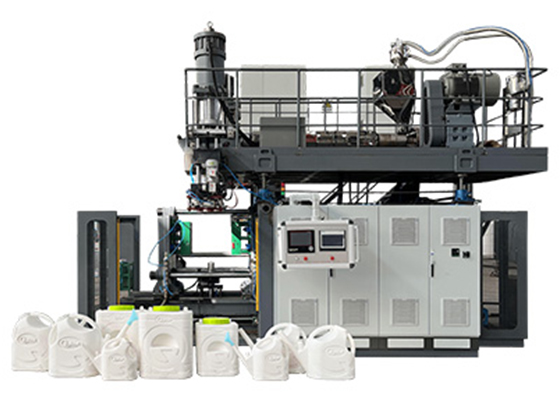

Home/Packaging Materials/30L Plastic Watering Cans Blow Moulding Machine/

QINGDAO YANKANG PLASTIC MACHINERY CO.,LTD
ShangHai, ChinaModel No.
30L
Screw Diameter (mm)
90
Screw L / D ratio (L/D)
25/1
Screw drive power (KW)
30
NO.of heating zone (zone)
4
Screw Heating capacity (KW)
20
Output of HDPE (kg/h)
80-110
Main Oil pump drive power (KW)
15(22)
Max Mould Size (mm)
800*850 Or customized
Clamping Force (KN)
260
Max. diameter of Die head (mm)
100-240
Die head heating power (KW)
18
NO.of heating zone of die head (zone)
4
Blowing pressure (Mpa)
0.8
Cooling water pressure (Mpa)
0.3
Water consumption (L/min)
60
Total power (KW)
80
Dry cycle (pc/h)
600
Size of machine (LxWxH)m
4.2*2.2*3.3
Weight of machine (TON)
12
PLC SIEMENS Germany
Touch Screen SIEMENS Germany
Inverter SIEMENS Germany
Screw Motor SIEMENS Germany
Air Switch SIEMENS Germany
Contactor SIEMENS Germany
SSR(Solid State Relay) CARLO GAWAZZI Switzerland
Wall Thickness Controller MOOG USA
Servo Valve YUKEN Japan
Hydraulic Valve YUKEN Japan
Solenoid Valve YUKEN Japan
