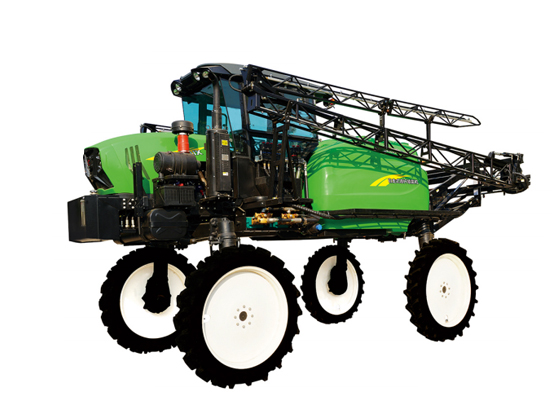

1, ground clearance 1.2 meters, suitable for cotton, soybean, wheat, rape and other dwarf crops plant protection operations.

2, humanized design, fully sealed cab with air conditioning, spacious and comfortable space, improve the comfort of the operator, reducethe toxicity of pesticides to the operator.

3.the spray width of 28 meters high efficiency, hydraulic drive double drug pump pressure is strong, the use of stainless steel spray bodymulti-type nozzle atomization uniform

4, 120 HP supercharged engine, abundant power, strong output torque, can directly go to the field after rain.

5, the new independent high-end double deceleration elevated adjustable drive axle, diameter 1.23 meters widened pneumatic tires, stableperformance,adapt to a variety ofharsh environment easy to rescue themselves.

6, independent research and development of heavy-duty 12-speed synchronizer gearbox, gear clear,fiexible control, gear speed moreconnected,greatlyimprove working efficiency.

7, the whole machine structure adopts 2-shape design, lower center of gravity, reduce rollover hazards, uniform weight distribution beforeand after, better driving through.

8, the spray rod adopts manganese steel triangular frame design, five-stage hydraulic expansion, convenient and fast, reasonable andstable structure, reduce the deformation and fracture of the spray rod.

9, spray rod buffer balancing device, optional electronic balance, spray rod swing adopts telescopic high-elastic spring design, the mainspray frame double cylinder structure, stability is greatly enhanced.

10,the whole machine frame and bearing parts are made of manganese stee, using electrophoreic paint coating process, bearing andanti-corrosion effect is better

11, two rounds, four rounds,three kinds of oblique steering, turning radius is smal,the maximum range to reduce the roling of crops, tomeet the operation under various circumstances.

12, can be installed corn cutting device and tillage fertilization device, a multi-puroose machine to meet the needs of a variety of users.

13. the standard mixed medicine bracket, hvdraulic folding ladder, on and off the safe and convenient, reduce the damage to crops duringoperation.
