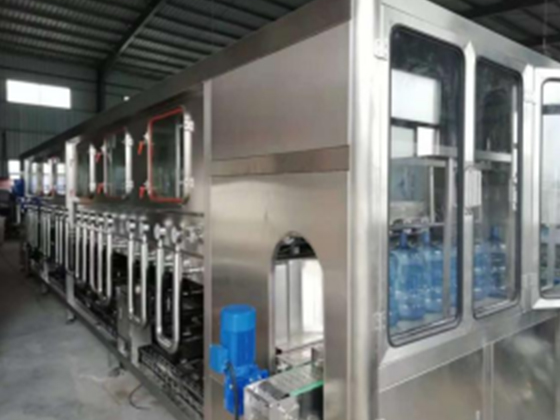

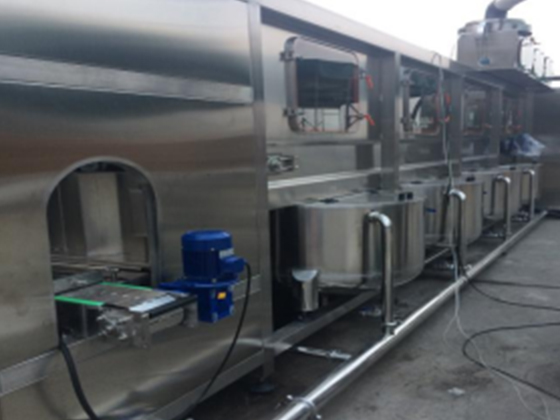

5. Bucket internal flushing and automatic bucket lowering (first horizontal bucket removal, then 90° vertical bucket lowering)

This process is realized by the bucket washing and filling machine:
When the photoelectric eye located at the tail of the machine body detects the barrels sent by the upper barrel manipulator, the barrel conveying mechanism inside the machine starts to work, sending the bottles to the first rinsing station, and the barrel conveying mechanism stops working. The internal flushing adopts 12 independently controlled 4-row high-pressure internal spray washes, with a maximum flushing time of 15 seconds.
The flushing water pump adopts a multi-stage high-pressure pump, which is placed inside the machine body. The overall appearance is elegant and generous, and it is convenient for maintenance and repair.
Bottle washing station 1: Isolated drip drying.
Bottle washing Station 2: Backwater rinsing. Pre-rinse the dirt and debris in the bucket to prevent them from being carried into the next process.
Bottle washing station 3: Isolated drip drying.
Bottle washing station 4-5: Heated alkaline washing. It adopts 24Kw electric heating tubes and can be heated to 65℃. ② Heated alkaline washing and rinsing can effectively remove the dirt inside the bucket. ③ Rapid reflux structure, effectively preventing heat diffusion and saving energy; ④ There is an exhaust outlet above the workstation, which can remove the fog. ⑤ High-pressure flushing is adopted, and the water pump is placed inside the machine body. The overall appearance is elegant and generous, and it is convenient for maintenance and repair.
Bottle washing station 6: Isolated drip drying.
Bottle washing station 7-9: Rinse with high-concentration disinfectant. The disinfectant liquid circulates and rinses the bucket to kill microorganisms and bacteria. High-pressure flushing is adopted, and the water pump is placed at the bottom of the body. The overall appearance is elegant and generous, and it is convenient for maintenance and repair.
Bottle washing station 10: Function station.
Bottle washing Station 11: Rinse with sterile water. High-pressure flushing is adopted, and the water pump is placed at the bottom of the body. The overall appearance is elegant and generous, and it is convenient for maintenance and repair.
Bottle washing station 12: Isolated drip drying.
Circulating liquid medicine, double-layer filtration side flow recovery, convenient for sampling and testing. Each water tank is specially equipped with a low liquid level alarm for shutdown.
The chain stops washing when it moves, and there is a double-layer anti-water seepage partition to prevent water seepage.
The bottle is placed by a mechanical hand smoothly and noiselessly. It is suitable for various barrels produced in different regions and does not get stuck.
