一、Product material
|
Name |
Picture |
Specification |
|

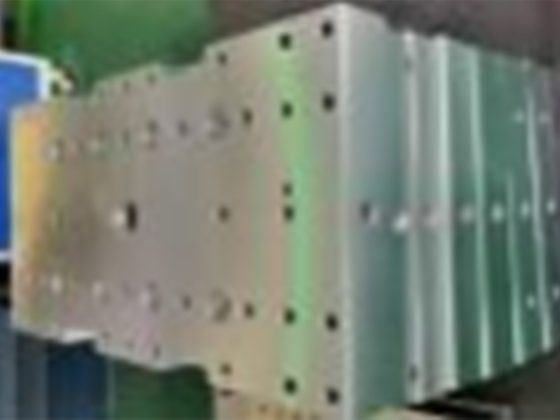

Mould plate |
|
Mould plate material is P20 steel, Verticality: within 0.02mm Parallelism: within 0.02mm |
|
Core |
|
Hardness:（HRC48-52） Material:632 Built-in spiral cooling water shaft. |
|
Cavity |
|
Hardness:（HRC48-52） Material:632 Four-axis machining of spiral cooling water shaft. |
|
Screw neck |
|
Hardness: (HRC46-48) Material:S136 Special heat dissipation and positioning pin design improves the quality of the preform and the service life of the screw neck. |
|
Needle valve |
|
Hardness:（HRC59-61） Japan brand High strength, corrosion resistance,be able to work under high pressure.suitable for precise processing |
|
Temperature controller
|
|
Guangdong brand, modular structure design, easy to disassemble, maintain and replace. It has multiple alarm modes, power off and couple off, sound and light alarm, leakage protection function, fully protect the heating element and thermocouple, safe and reliable |
|
Water and air nozzle
|
|
Disassembly and maintenance are very convenient, which prolongs the service life of the mold.
|
|
Inner hexagon screw
|
|
Use domestic well-known brand, Pengchi 12.9 grade screws to extend the service life of the mold.
|
