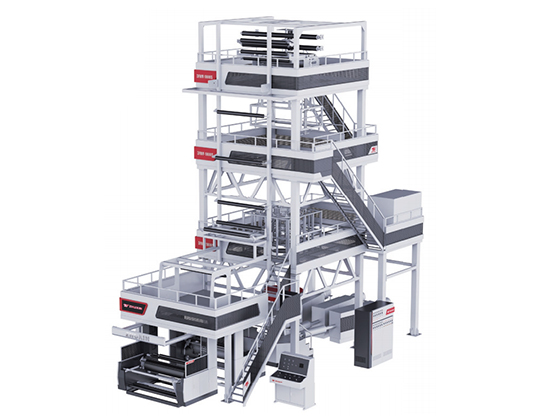

Home/Packaging Material Equipment/Bottle blowing machine/PET/5FFS-IBC---5 Layers Internal Bubble Cooling FFS film blowing production line/
Zhejiang Zhuxin Machinery Co.,Ltd.
ZheJiang-WenZhou, ChinaModel
5FFS-IBC
Suitable material
LDPE、LLDPE、MLLDPE、HDPE
Maximum film width
1000mm
Product thickness
0.10mm～0.25mm
Screw diameter
A:Φ55 B:Φ55 C:Φ65 D:Φ55 E:Φ55
Screw l/d length
32:1
Gearbox Model
A:173 B:173 C:200 D:173 E:173
Motor power
A:30kw B:30kw C:37kw D:30kw E:30kw
Max output
250-300Kg/h
Max winding diameter
Φ1400mm
Die diameter
Φ200mm
Winding method
Back to back automatic double winding
Horizontal 360 degree upward traction rotation
-
Ibc bubble internal cooling control system
-
Multi feeding gravmetric dosing systerm
5 sets
Machine outline dimension (L×W×H）
10×7.5×15m
The price including ：
Ф50(A) +Ф50(B) Alloy Screw-
CHINA Main Motor2set
S Type Gear Box2sets
AISET Temperature control full set
DANFOSS Inverterfull set
Fixed Die -
Dual-lip Air ring-
Air blower1 set
Mechanical single winder 1 set
CHINT Contactor, breaker,relay -
