Uses electric energy as the power source, with no environmental pollution.
-
The boiler operates normally with a water level capacity of less than 30L, and no annual inspection is required.
-
The boiler operates fully automatically, eliminating the need for manual operation and saving labor.
-
The boiler has multiple protections such as water shortage, overpressure, and anti-drying.
-
The connecting cable uses high-temperature resistant wires with high insulation grade, good heat dissipation, and durability.
-
The electric heating tube is connected to the furnace body with a flange, making it easy to install, replace, maintain, and repair.
-
Small size, easy to install and move.
-
Strictly manufactured according to national standards.

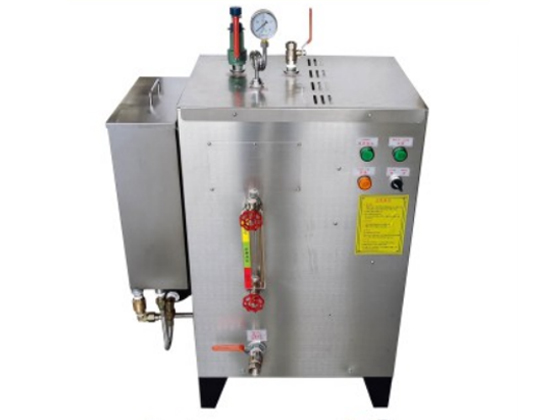

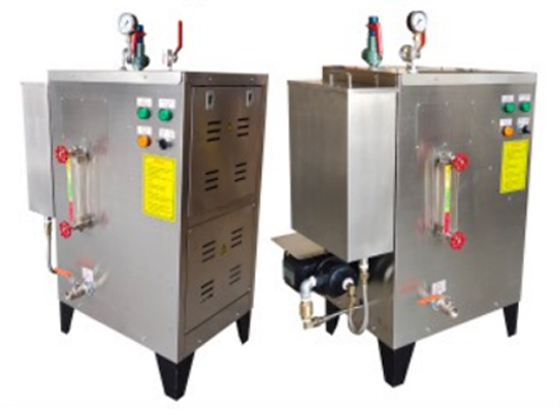

Home/Public Equipment/6-18KW Electric Steam Boiler/

Dongguan Hengsen Thermal Energy Technology Co., Ltd.
GuangDong-DongGuan, ChinaModel
LDZ0.008-0.7-D
Power (KW)
6
Evaporation (kg/h)
8
Voltage (V)
220/380
Current (A)
27/14
Rated Pressure (MPa)
0.7
Steam Outlet (mm)
DN15
Drain Port (mm)
DN20
Thermal Efficiency
99%
Dimensions (L×W×H/mm)
730×480×1040
Product Description
Technical Parameter
