GENERAL FEATURES

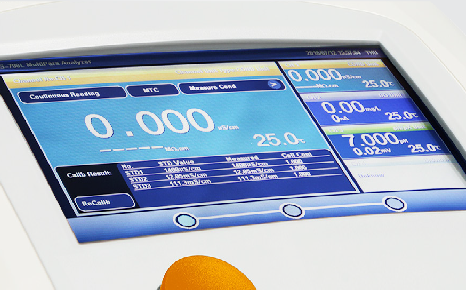

● Color High contrast LCD touchscreen, 7.0 inches.

● Intelligent operation system provides features including user management, calibration management, electrode management,method management, data management and etc.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data capacity of up to 1000 sets for each parameter (GLP-

compliant).

● Data analysis feature helps user review, compare and

recalculate results.

● Data can be transferred to PC or printer by USB or RS-232

communication interfaces.

● Automation measurement.

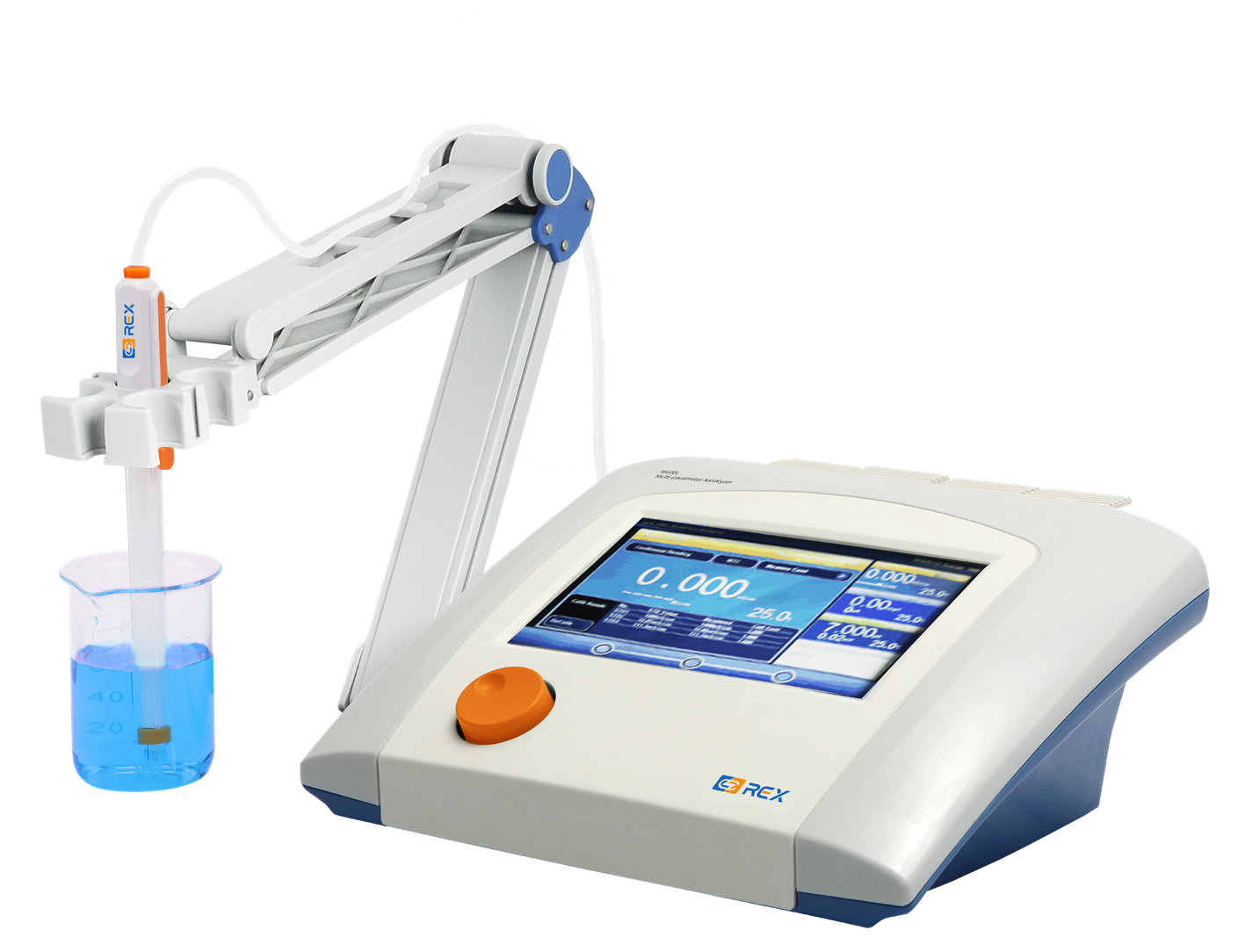

M600L Benchtop Multi-parameter Analyzer

● The multi-channel instrument allows measurements of 1, 2, 3 or



pH module / PH600L

● 1-6 points calibration with auto-buffer recognition.

● Selectable pH buffer groups, including NIST, DIN, GB.

● User-defined pH buffer or buffer group is supported.

● Automatic electrode diagnosis with pH slope and offset display.



Conductivity module / EC600L

● 1-5 points calibration automatically recognizes the standard solutions.

● Settable parameters, including cell constant, reference temperature (5/10/15/18/20/ 25°C), temperature compensation coefficient and TDS factor.

● Temperature compensation type (none, linear, pure water).



ISE module / I600L

● 1-6 points calibration.

● Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L,

pX, etc.

● Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

● Over 10 methods are built-in, including F-, Cl-, Br-, I-, NO -, BF -,

3 4

4 parameters simultaneously, either in the same or in different

samples.

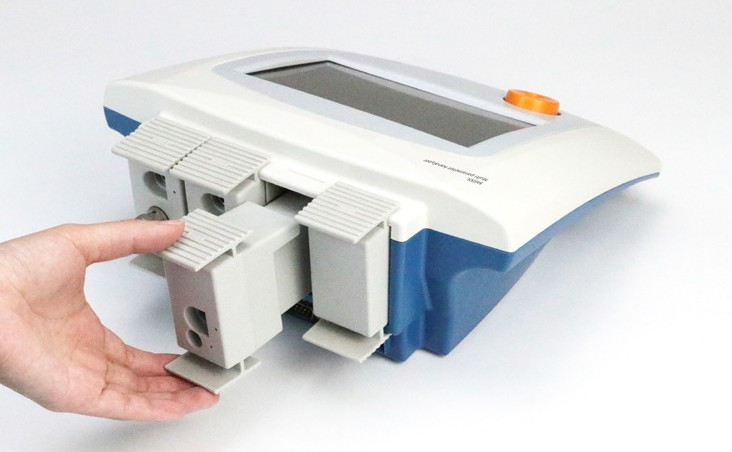

● Four measurement channels can be configured in any combination.

● Support for three modules, namely pH/ISE module, conductivity module and dissolved oxygen module.

● Select from three modules to customize the four channels your way.

NH +, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and etc.; user-defined method is

supported.



DO module / DO600L

● 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

● Automatic/Manual barometric pressure compensation.

● Manual Salinity Factor Correction.
