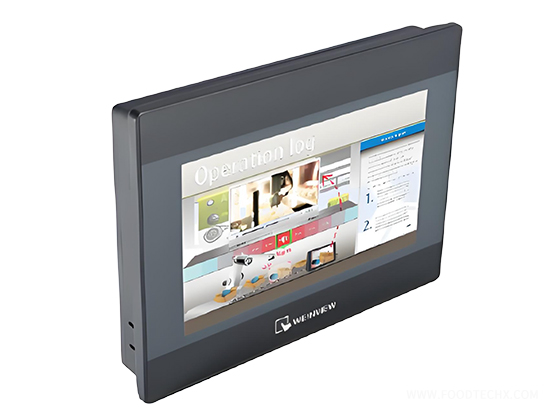

Name: 7" TFT LCD Touch Screen Human-Machine Interface (HMI) Features
Brand: SHENZHEN WEINVIEW CO.,LTD
SKU: 4c783856b3012330f36b6440253c42f1
Price: 71 USD
Availability: InStock
Rating: 4.8 (20 reviews)

General-Purpose TK6072iP7" TFT LCD Touch Screen Human-Machine Interface (HMI) Features

7" 800x480 TFT LCD with LED backlight
Fanless cooling system
Built-in storage flash memory and real-time clock
NEMA4 / IP65 front panel protection rating
COM2 RS-485 2W supports MPI 187.5K
Built-in power isolation protection

Display

:

Display Type

7” TFT LCD

Resolution

800 x 480

Brightness (cd/m²)

450 Contrast Ratio

500:1

Backlight Type

LED

Backlight Lifetime

>30,000 hours

Color Depth

16.7M

LCD Viewing Angle (T/B/L/R)

60/70/70/70

Dot Pitch (mm)

0.1926(H) x 0.179(V)

Touch Panel

:

Type

4-wire resistive

Touch Accuracy

Action area: Length (X)±2%, Width (Y)±2%

Memory

:

RAM

128 MB

Flash Memory

128 MB

Processor :

Dual-core RISC central processing unit (CPU)

Interfaces

：

USB Host:

None

USB Client:

USB 2.0 x 1 (Micro USB)

Ethernet Interface:

None

Serial Interfaces:

COM1: RS-232 4W; COM2: RS-485 2W/4W

RS-485 Dual Isolation Protection:

None

Real-Time Clock:

Built-in

Power Supply：

Input Power24±20% VDC

Power Consumption250mA@24VDC

Power IsolationBuilt-in

Withstand Voltage500VAC (1 minute)

Insulation ResistanceOver 50MΩ at 500VDC

PCB CoatingNone

Mechanical Specifications：

Housing MaterialEngineering plastic

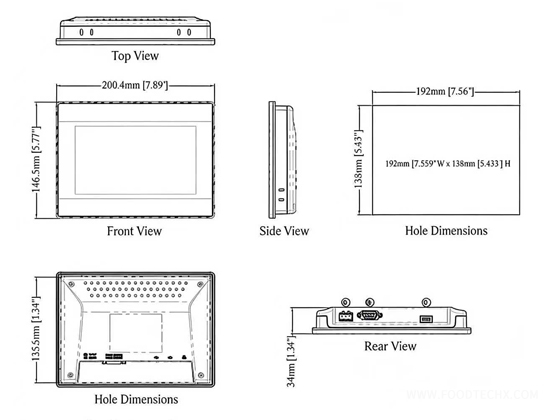

Overall Dimensions (WxHxD)200.4 x 146.5 x 34 mm

Cutout Dimensions192 x 138 mm

WeightApprox. 0.52 kg

Mounting MethodPanel mounting

Protection RatingNEMA4 / IP65 Compliant Front Panel

Storage Temperature-20° ~ 60°C (-4° ~ 140°F)

Operating Temperature0° ~ 55°C (32° ~ 131°F)

Relative Humidity10% ~ 90% (non-condensing)

Vibration Resistance10 to 25Hz (2G for 30 minutes in X, Y, Z axes)

CertificationCE marked

Software ：EasyBuilder Pro (only for Simplified Chinese version, requires EBPro V6.08.01 or later versions)
