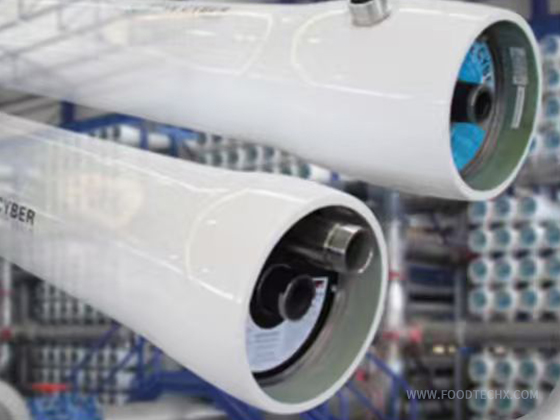

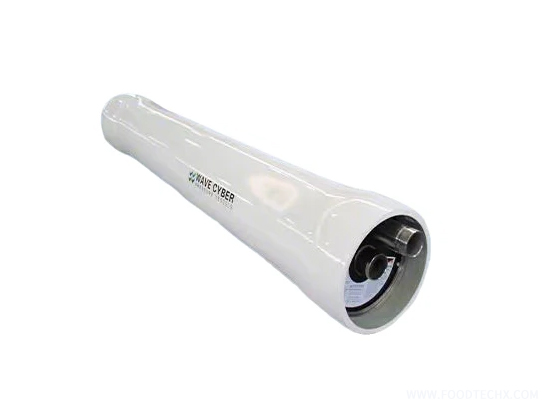

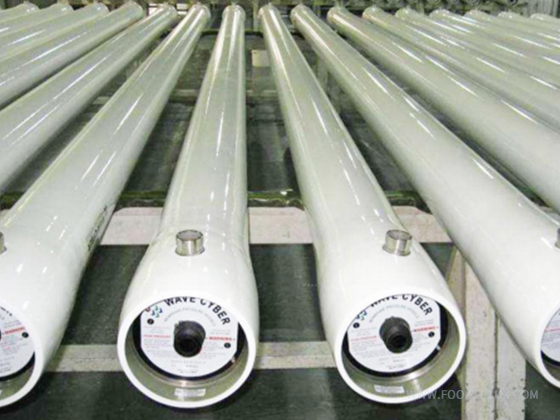

Technical Requirements

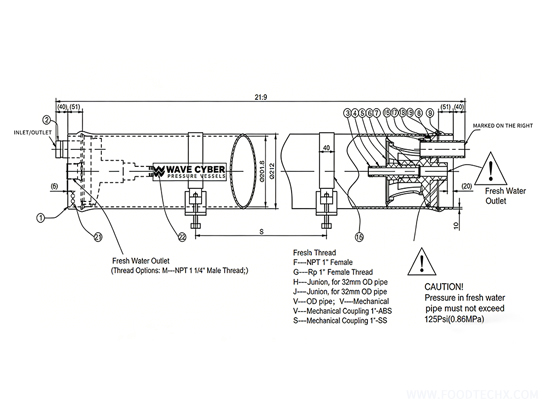

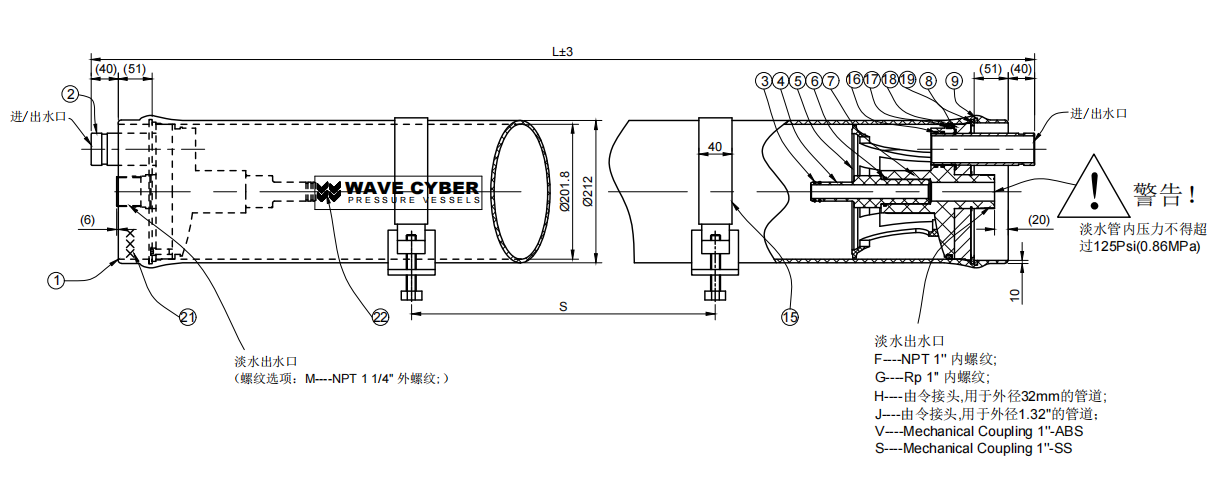

Fresh Water Outlet Port |
|
(Thread Options: F----1'' NPT Female Thread; G----1'' Rp Female Thread; H----Union Joint for pipes with outer diameter of 32mm; J----Union Joint for pipes with outer diameter of 1.32''; V----1'' Mechanical Coupling - ABS; S----1'' Mechanical Coupling - SS; M----1 1/4'' NPT Male Thread;) |
| Name | Drawing No. | Code | Fresh Water Port Specification | Computer No. |
|---|---|---|---|---|
| 300PSI Pressure Head | 24300-03-09 | N | 1 1/2'' NPT Male Thread | 11155 |
| 24300-03-06 | M | 1 1/4'' NPT Male Thread | 10108 | |
| 24300-03-03 | S | 1'' Mechanical Coupling - SS | 10093 | |
| 24300-03-03 | V | 1'' Mechanical Coupling - ABS | 10093 | |
| 24300-03-03 | J | 1.32'' Union Joint (American Standard) | 10093 | |
| 24300-03-03 | F | 1'' NPT Female Thread | 10093 | |
| 24300-03-03 | G | 1'' Rp Female Thread | 10093 | |
| 24300-03-03 | H | 32mm Union Joint (National Standard) | 10093 |
| SHELL Length Code | L (Inch/ mm) | S Span (Inch/ mm) | Weight (lb/ kg) |
|---|---|---|---|
| -1 | 62.0 / 1575 | 1@28 / 711 | 35.2 / (16) |
| -1.5 | 82.0 / 2083 | 1@42 / 1067 | 44 / (20) |
| -2 | 102.0 / 2591 | 1@56 / 1422 | 51.7 / (23.5) |
| -3 | 142.0 / 3607 | 1@80 / 2032 | 68.2 / (31) |
| -4 | 182.0 / 4623 | 2@64 / 1626 | 84.7 / (38.5) |
| -5 | 222.0 / 5639 | 2@78 / 1981 | 101.2 / (46) |
| -6 | 262.0 / 6655 | 2@92 / 2337 | 117.7 / (53.5) |
| -7 | 302.0 / 7671 | 2@106 / 2692 | 134.2 / (61) |
| -7.5 | 322.0 / 8179 | 2@114 / 2896 | 143 / (65) |
| -8 | 342.0 / 8687 | 2@120 / 3048 | 150.7 / (68.5) |

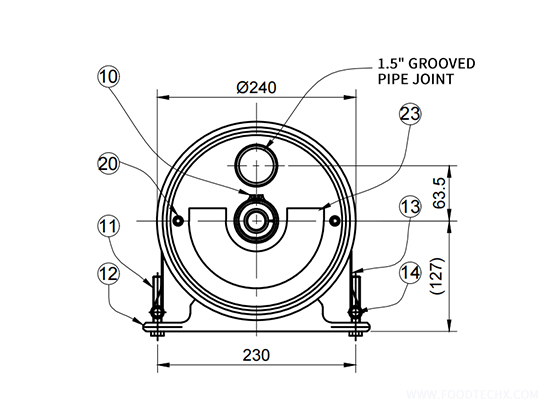

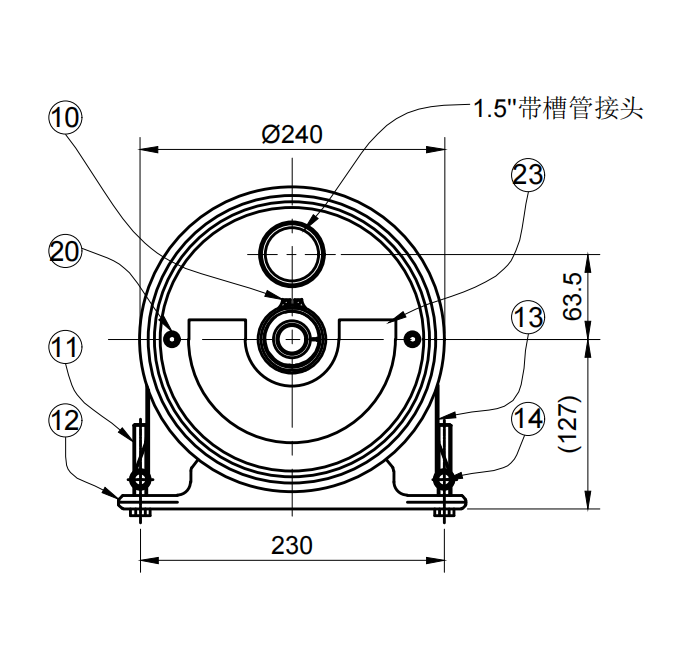

| No. | Name | Drawing No. | Quantity | Material & Specification | Computer No. |
|---|---|---|---|---|---|
| 23 | Aluminum Plate Label | 2 | Adhesive Label | 40245 | |
| 22 | Company Logo Label | 2 | Adhesive Label | 40255 | |
| 21 | Product Serial Number Label | 1 | Coated Paper (20*53mm) | 40425 | |
| 20 | Hex Socket Bolt | 4 | Stainless Steel M5*10 | 20132 | |
| 19 | Shaft Retaining Ring for Port | (24300-06) ED25-08-06 | 2 | 316 Stainless Steel | 20108 |
| 18 | Pressure Bearing Plate | (24300-05) ED30-08-05 | 2 | Aluminum Alloy | 20066 |
| 17 | Large Sealing Ring | 23300-26 | 2 | EPDM | 10175 |
| 16 | Port O-Ring | (24300-04) ED25-08-04 | 4 | EPDM | 10180 |
| 15 | Hoop Sleeve | (23300-19) EC30-08-19 | 2 or 3 | Rubber | 10188 |
| 14 | Hoop Nut | (23300-18) EC30-08-18 | 4 or 6 | Copper | 20123 |
| 13 | Hoop | (23300-17) EC30-08-17 | 2 or 3 | 304 Stainless Steel | 20123 |
| 12 | Base | (23300-16) EC30-08-16 | 2 or 3 | Rubber | 10141-1 |
| 11 | Hoop Screw | 4 or 6 | Stainless Steel M8*90 | 20129 | |
| 10 | Elastic Shaft Retaining Ring | (23300-03) EC30-08-03 | 2 | 316 Stainless Steel | 20107 |
| 9 | Insert Ring | (23300-15) EC30-08-15 | 2 | 316L Stainless Steel | 20072 |
| 8 | Retaining Ring | (23300-12) EC30-08-12 | 2 | 316 Stainless Steel | 20025 |
| 7 | Pressure Head | See "Pressure Head Selection Table" | 2 | Engineering Plastic | See table |
| 6 | Pressure Head O-Ring | (23300-08) EC30-08-08 | 2 | EPDM | 10181 |
| 5 | Thrust Ring | (24300-07) ED25-08-07 | 1 | Engineering Plastic | 10193 |
| 4 | Adapter (Ø29.1) | (23300-13) EC30-08-13 | 2 | Engineering Plastic | 10125 |
| 3 | Adapter O-Ring | (23300-14) EC30-08-14 | 4 | EPDM | 10182 |
| 2 | Port | (24300-02) ED25-08-02 | 2 | 316L Stainless Steel | 20101 |
| 1 | Membrane Vessel | (24300-01) ED25-08-01 | 1 | Glass Fiber + Epoxy |
