Features:

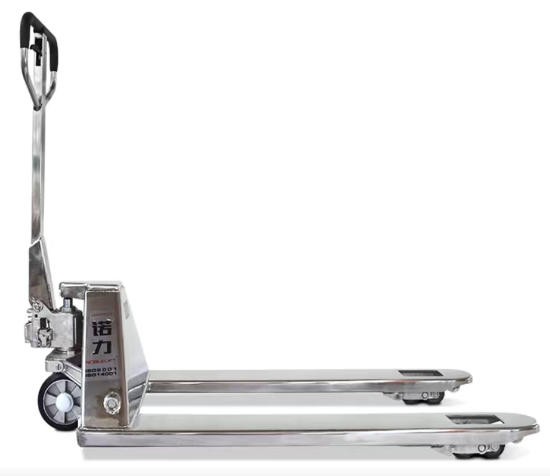

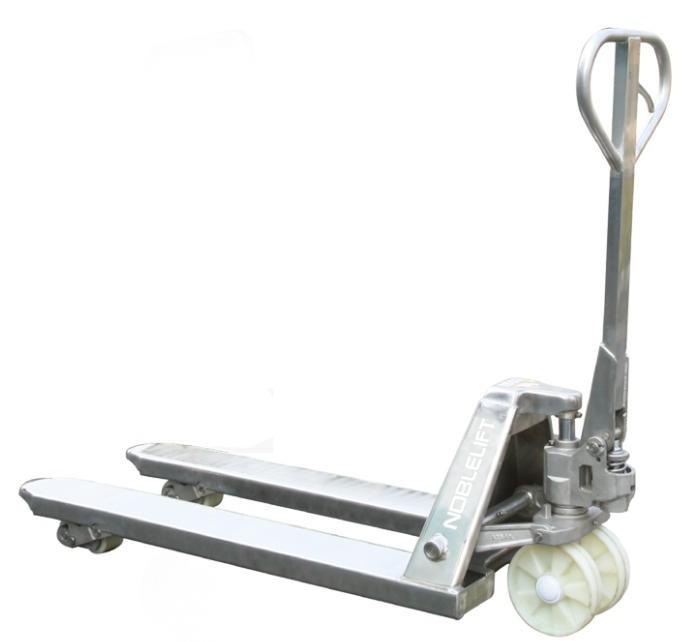

- Simplified, durable, and meticulously crafted pallet truck
- Ideal for manual handling of goods in various scenarios such as refrigerated warehouses, cold chain logistics, and seafood processing.
- Made of reinforced stainless steel, it is sturdy, corrosion-resistant, and boasts a refined and aesthetically pleasing design.

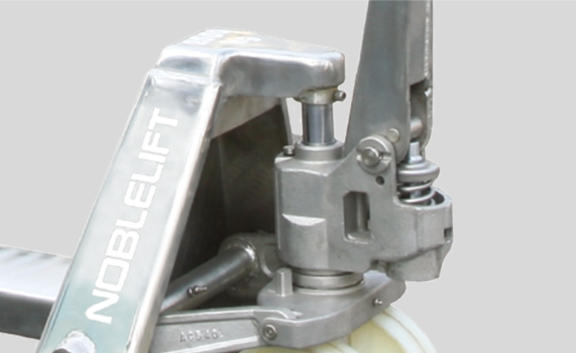

- All pivot points are lubricated to ensure smooth operation and easy steering.
- Composite bushings and chrome-plated axles ensure quiet and smooth lifting and movement, resulting in a long service life.
Parameter:
| Specification Item | Unit | Values |
|---|---|---|
| Rated Load Q | kg | 2000/2500/3000 |
| Min. Fork Height h13 | mm | 85/75 |
| Max. Fork Height h1 | mm | 200/190 |
| Steering Wheel | mm | 200×50/180×50 |
| Load Roller (Single) | mm | 80×93/74×93 |
| Load Roller (Tandem) | mm | 80×70/74×70 |
| Fork Size e×s | mm | 160×50/160×60 |
| Overall Fork Width | mm | 450/520/540/685 |
| Fork Length | mm | 800/900/1000/1100/1150/1220 |
