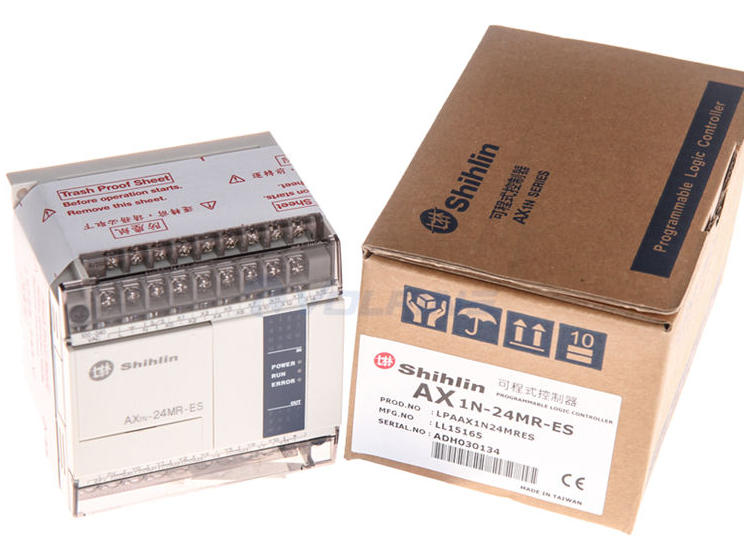

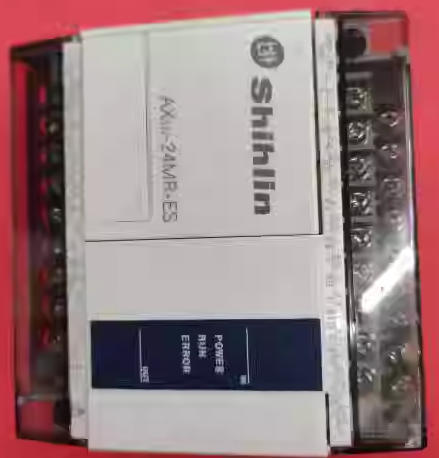

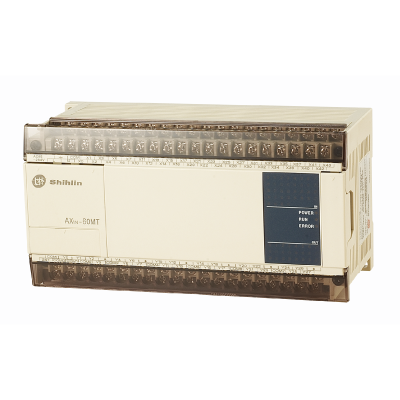

The AX1N can be used with digital/analog converters and communication modules. The main unit features built-in two-axis 100kHz positioning capabilities to meet various control needs.
It is available in 14/24/40/60-point configurations, and can be expanded to a maximum of 128 points via AC power or DC input.

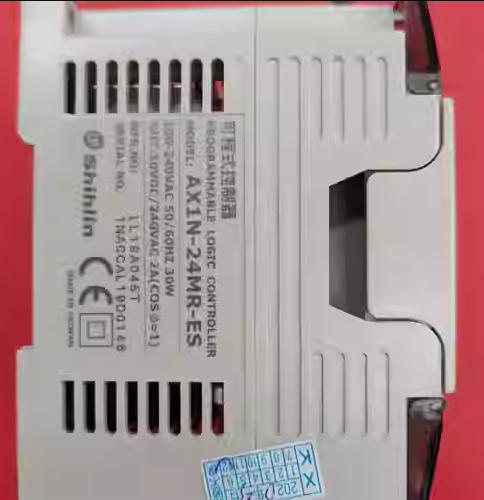

PLC Module Specifications
| Relay Output (AC Power, DC Input) | Transistor Output (AC Power, DC Input) | Total I/O Points | Input Points | Output Points |
|---|---|---|---|---|
| AX1N-14MR-E5 | AX1N-14MT | 14 (16) | 8 | 6 (8) |
| AX1N-24MR-E5 | AX1N-24MT | 24 (32) | 14 (16) | 10 (16) |
| AX1N-40MR-E5 | AX1N-40MT | 40 | 24 | 16 |
| AX1N-60MR-E5 | AX1N-60MT | 60 (64) | 36 (40) | 24 |
Features:
•Power Supply Range: AC 100~240V
• Number of Main Unit Points: 14/24/40/60, expandable to a maximum of 128 points
• Basic Commands: 27 types, Application Commands: 89 types
• Processing Speed: Basic commands 0.55~0.7μs/command, Application commands 3.7~hundredsμs/command
• Built-in Program Capacity: 8K Steps EEPROM, optional 8K Steps EEPROM (writeable 10,000 times)
• Instruction Functions: Data transfer comparison, mathematical and logical operations, data rotation and shift, height processing, etc.
• Auxiliary Relays: 1536 points (general), 256 points (special)
• Status Relays: 1000 points
• Timers: 100ms: 200 points, 10ms: 46 points, 100ms integrator type: 6 points, 1ms integrator type: 4 points, Analog 2 Points
• Counters: 16 bits: 200 points, 32 bits: 35 points, high-speed counters: 2 points
• Data buffers: 8000 points for general use, 56 points for special use, 16 points for indexes, 7000 points for files
• Indicators: P: 128 points, I: 6 points, nested netting up to 8 levels
Specifications and Features
| Category | Description |
|---|---|
| Program Memory | Built-in 8000-step EEPROM. Optional AX1N-EEPROM-BL (BK Steps). The memory module has a read/write switch, allowing programs to be read/written without a computer for easy portability. |
| Perpetual Calendar Clock | Built-in Real-Time Clock (RTC) function. Supports time setting instructions, time comparison instructions, and automatic leap year correction. |
| Instruction Types | 27 basic instructions, 2 step ladder instructions, 89 types of application instructions. |
| Processing Speed | Basic Instructions: 0.55 - 0.7 μs / instruction. Application Instructions: 3.7 - several hundred μs / instruction. |
| High-Speed Processing | I/O refresh instruction, input filter adjustment, high-speed input interrupt, pulse catch function. |
| Auxiliary Relays & Timers | Auxiliary Relays: 1536 points. Timers: 256 points. |
| Counters | 16-bit counters: 200 points. 32-bit counters: 35 points. High-speed counters: 60kHz*2 points + 10kHz*4 points * 2 channels; 30kHz*1 point + 5kHz*1 point. |
| Data Registers | General: 8000 points. Special Registers: 256 points. File Registers: 7000 points. Index Registers: 16 points. |
| Special Modules | Each special module occupies 8 system points. Maximum of 8 modules can be connected. |
| Display Module | Can be directly connected to the main body's HMI (Human Machine Interface) or used with the SDM display module. |
| Supported Data Communication Links | Peripheral device connection, Easy link between PLCs (max. 8 units), Parallel link between AX PLCs (2 units), Connection between computer and PLC. |
