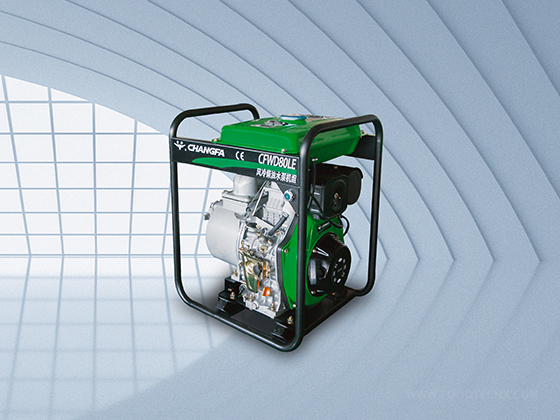

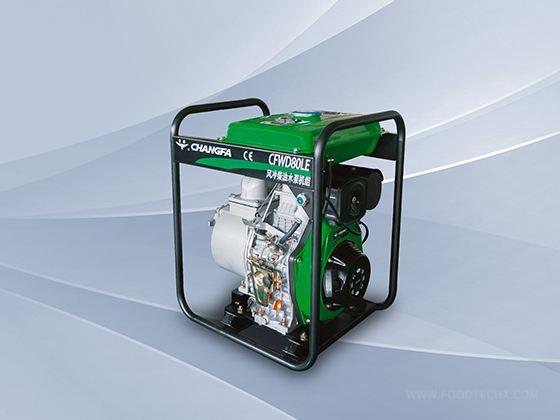

Changzhou City, Jiangsu Province, ChinaChangfa Air-Cooled Diesel Water Pump Set
Product Features
- Fuel-Efficient
Equipped with a high-performance Changfa air-cooled diesel engine to ensure low fuel consumption.
- High Lift & Fast Self-Priming
Strong power output combined with a vortex impeller design ensures excellent sealing performance. It significantly increases the lift height and shortens the self-priming time.
- Easy to Use
Compact structure and lightweight design enable hassle-free operation without the need for electrical connection, ensuring convenience and safety.
- Durable & Reliable
The pump features a reliable power system and a reinforced pump cover structure for long-lasting service life.
Model
CFWD50C/L/E
Nominal Pipe Diameter (mm)
50
Flow Rate (m³/h)
22 / 35
Lift (m)
1.8 / 18
Max Suction Lift (m)
8 / 6
Engine Model
CF173F / CF173F/CF178F
Rated Power (kW)
2.8 / 4
Rated Speed (rpm)
3600
Displacement (L)
0.211 / 0.296
Starting Method
Manual/Electric
Fuel Tank Capacity (L)
2.5/12.5 / 3.5/12.5
Overall Dimensions (mm)
510×455×515 / 510×455×585 / 590×455×570 / 590×455×640
Weight (kg)
43/47 / 55/59
