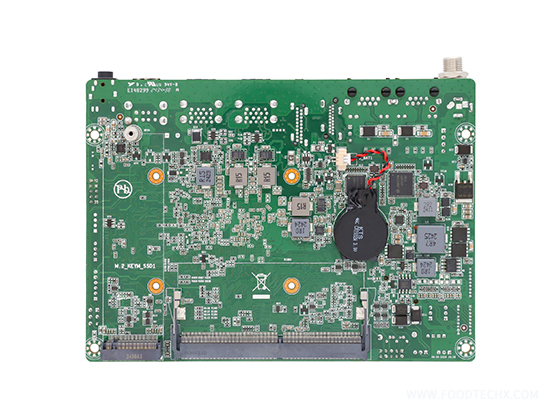

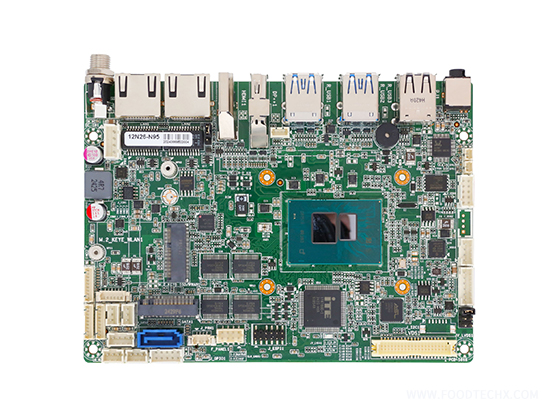

SV3-12N26
Intel Core Alder Lake-N Processors, 2*GbE LAN, 4*USB 3.0, 5*USB 2.0, 6*COM, 2*M.2, 3.5''
Home/Accessories/Consumables/Electrical/Servo system/Alder Lake-N---SV3-12N26/
Shenzhen Seavo Technology Co.,Ltd.
, ChinaGeneral
:
CPU
Intel® Alder Lake-N N95, N97, N100, Core™ i3-N305 CPU
Memory
DDR4-3200, 1*SO-DIMM, up to 16 GB
Storage
1*SATA 3.0, 1*M.2 (Key-M, 2280, SATA/PCIe NVME SSD)
Expansion
1*M.2 (Key-E, 2230, PCIe+USB 2.0, Wifi+BT)
Expansion
1*M.2 (Key-B, 2242/3052, SATA+USB 3.0+USB 2.0, SSD/4G/5G)
BIOS
AMI UEFI BIOS
OS
Windows 10/11, Linux

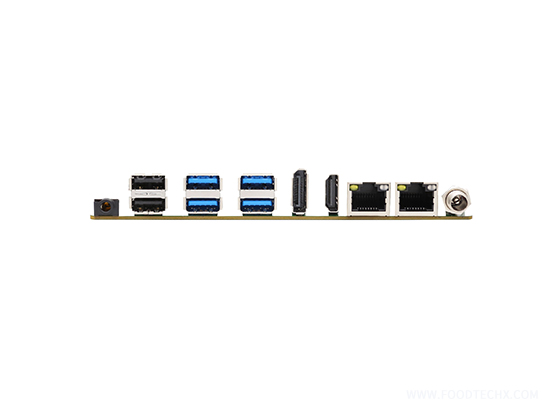

I/O Interface
:
Ethernet
2*Intel® Ethernet Controller i210&i225, RJ45
Serial
3*RS232, 2*RS232/TTL, 1*RS485
USB
4*USB 3.2 GEN1 5Gbps, 5*USB 2.0
Audio
Realtek® channel HDA Codec, with MIC/Line-out and Amplifier
GPIO
8*Programmable GPIO
Display:
Display Interface Intel UHD Graphics 1*HDMI, max resolution up to 4096*2160@30Hz 1*DP, max resolution up to 4096*2160@60Hz 1*eDP/LVDS: eDP, max resolution up to 4096*2160@60Hz LVDS, max resolution up to 1920*1200@60Hz
Multiple DisplayTriple
Mechanical & Environment :
Dimension146*105mm
Power InputDC 12/24V
TemperatureOperation: 0℃~60℃, Storage: -45℃~80℃
Relative Humidity5%~95%, non-condensing
