GuangDong-JiangMen, ChinaModel

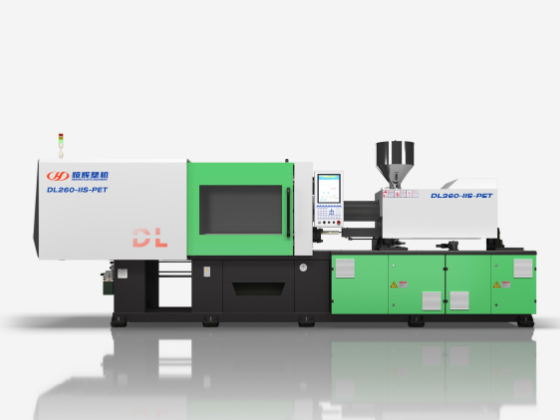

DL260-IIS/1550-PET
Injection Unit
:
Screw diameter (mm)
67
Screw L/D ratio (L/D)
23
Screw stroke (mm)
300
Injection volume (cm³)
300
Injection weight (PET) (g)
1313
Theoretical Injection rate (g/s)
289
Injection pressure (Mpa)
147
Theoretical Plasticizing rate(PET) (g/s)
59.3
Screw speed (rpm)
144
Glue melting method
Oil motor
Clamping Unit
:
Clamping force (kN)
2600
Mold opening stroke (mm)
525
Dist. between tie bars (hxV) (mm)
580x580
Template size (HxV) (mm)
835x835
Max distance of template opening (mm)
1125
Max mold height (mm)
600
Min mold height (mm)
200
Ejector stroke (mm)
160
Ejector tonnage (kN)
99
Others
:
Pressure of systm (Mpa)
17.5
Pump motor power (Kw)
20.5
Machine dimension (LxWxH) - m
6.47x1.56x2.28
Machine weight - T
8.3
Oil tank - L
460
Direction valveYUKEN ---Japan
Glue motorDanton---China
Hydraulic oil pump - Gear pumpFirst --- China
High-pressure oil pipeAEROQUIP --- America
ComputerEST --- China
Servo driverMODROL --- China
Servo motorMODROL --- China
Mould PlateMaterial: QT-500-7A --- China
Guide postMaterial:40Cr ----China
Screw, Machine barrelMaterial: 38CrMoAlA---China
Proximity switchHONEYWELL---America
AC contactorLeuze --- Germany
Thermal relaySchneider ---- France
Control switchSchneider ---- France
Electronic rulerGEFREN --- Italy
Pressure sensorGEFREN --- Italy
Sealing partSEALTECH --- Hong Kong
