SHENZHEN WEINVIEW CO.,LTD
GuangDong-ShenZhen, ChinaInput
:
Input Voltage Range (V)
Three-phase 320V ~ 460V
Output
:
Output Voltage Range (V)
0 ~ 380V
Maximum Overload Current
110% for long-term operation; 150% for 1 minute; 180% for 5 seconds
Frequency Range
0 ~ 600Hz
Control & Operation
:
Output Frequency Accuracy
0.1Hz
Speed Regulation Range
1:100
Control Methods
V/F control, simple vector control
Torque Boost
Manual setting, automatic boost
Starting Torque
100% rated torque at 5.0Hz (VF control); 150% rated torque at 1.5Hz (simple vector control)
Voltage-Frequency Characteristic
V/F linear curve, square curve, multi-point V/F curve
Acceleration/Deceleration Curve
Linear acceleration/deceleration curve
Frequency Setting Inputs
Local keypad, potentiometer, communication, multi-speed, analog signal, PID control, pulse signal, others
Input Terminal Command Signals
Start, jog, multi-speed, fault reset, analog signal switching, others
Input Terminals
5 digital input terminals (customizable functions); 2 analog input terminals: ACI accepts 0/4~20mA current analog signal, AVI accepts 0-10V voltage analog signal
Output Terminals
1 multi-function collector output terminal; 1 set of multi-function relay output terminals; 1 analog output terminal (customizable output voltage or current)
Standard Functions
Automatic current limiting and voltage limiting, manual torque boost, automatic torque boost, energy consumption control, DC braking, automatic fault reset, 7-segment multi-speed operation, frequency skip function, closed-loop PID regulation, frequency upper/lower limit restriction, carrier frequency adjustment, automatic voltage stabilization operation, low-noise operation, RS485 communication, slip frequency compensation
Protection Functions
Overvoltage, undervoltage, external fault, overcurrent, current limiting, overheating, overload, etc.
Communication Interface
RS-485 communication interface
Braking Unit
Standard configuration for the entire series
Display
:
LED Display
Optional displays: Output frequency, output voltage, output current, output speed, set frequency, module temperature, analog feedback, analog output, etc.
Operating Conditions
:
Communication Method
RS-485 communication interface with standard MODBUS protocol
Installation Location
Environments free from direct sunlight, dust, corrosive gases, flammable gases, steam, and dripping water
Operating Environment
-10℃ ~ +40℃; Derate usage at 40℃ ~ 50℃ (4% derating per 1℃ increase)
Vibration
Less than 0.5g
Storage Environment
≤95%RH (no condensation), -20℃ ~ +40℃
Mounting Methods
Wall-mounted, DIN rail-mounted (for models below 4KW)
Protection Class
IP20
Cooling Method
Forced air cooling

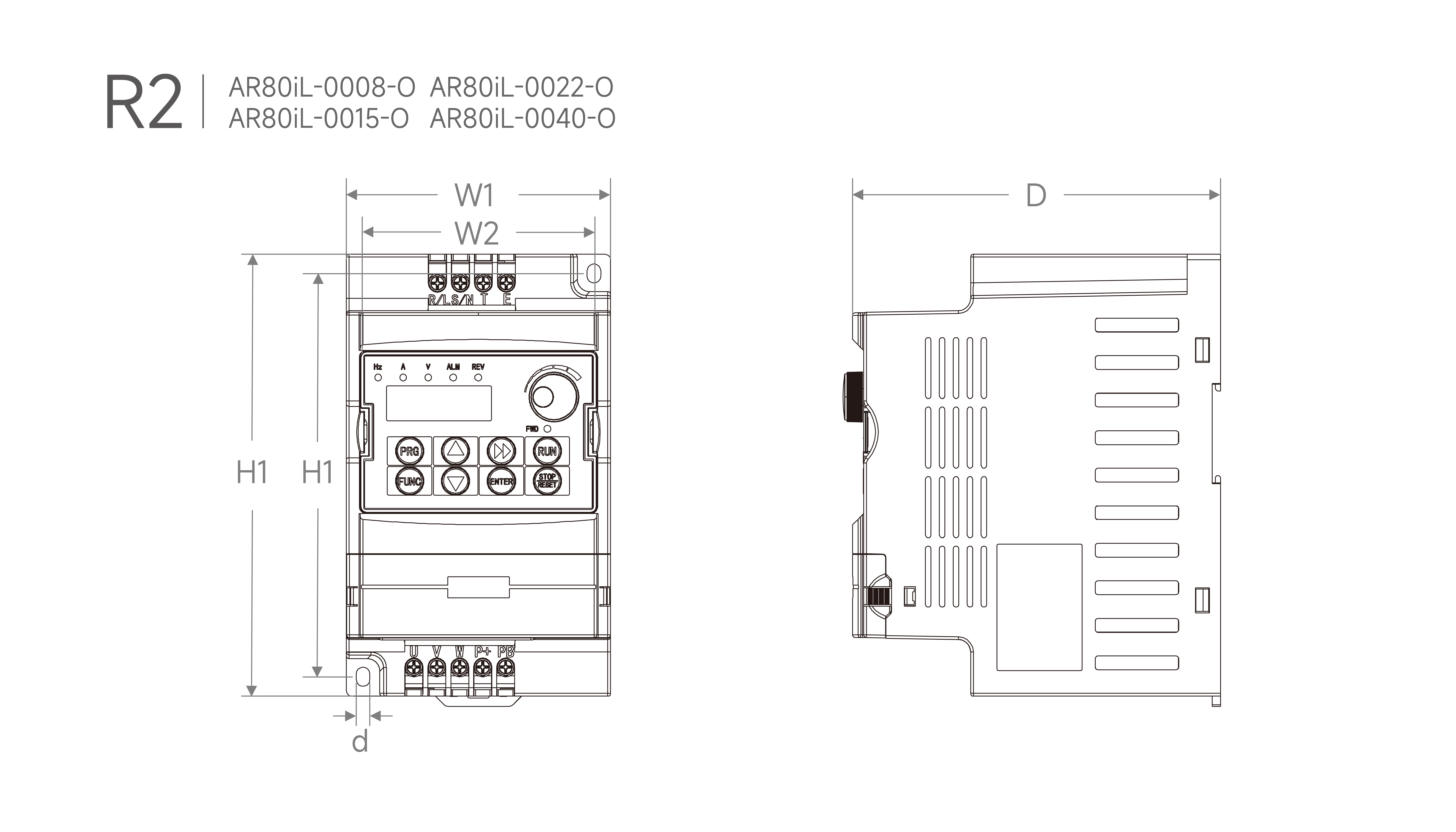

- Dimensional Drawings
