High flatness and corrosion-resistant end surface sealing.
-
Keyboard lock function, stop (cut off) electrical parameter protection and indication.
-
No raw water bypass during regeneration, with adjustable maximum interval regeneration days.
-
Equipped with signal output port, remote control port, capable of receiving wireless signals.
-
With interlock function, can be used for simultaneous water supply and regeneration systems.
-
Optional operation according to time type and flow type.

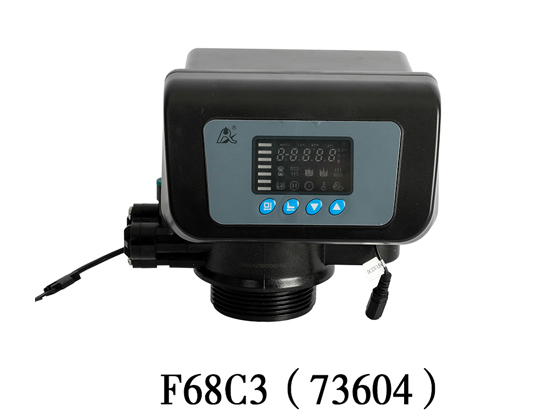

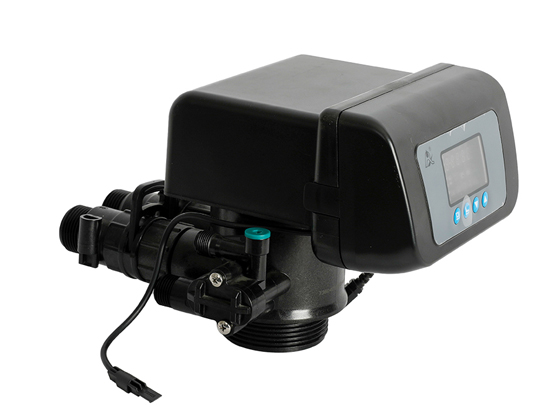

Home/Water Treatment Equipment/Automatic Softening Valve 73504S(F68C1) / 73604S(F68C3)/
Wenzhou Runxin Manufacturing Machine Co. Ltd
ZheJiang-WenZhou, ChinaModel
Time Type: 73504S(F68C1)
Flow Type: 73604S(F68C3)
Installation Method:
Top-mounted
Inlet/outlet
1" M
Drain Port:
1/2" M
Salt Suction Port:
3/8" M
Base:
2.5"-8NPSM (Tank Port)
Center Tube:
1.05" OD
Water Output:
4 m³/h
Suitable Tank Size:
6"-18"
Operating Pressure:
0.15-0.6MPa
Inlet Water Temperature:
5-50°C
Inlet Water Turbidity:
Reverse osmosis regeneration < 2FTU
Suitable Power Supply:
Input AC100 ~ 240V/50 ~ 60HZ Output DC12V/1.5A
Applicable Scenarios:
Domestic softening, ion exchange systems, boiler water softening systems, reverse osmosis pretreatment softening systems.
