High flatness and corrosion-resistant end surface sealing.
-
Keyboard lock function, stop (cut off) electrical parameter protection and indication.
-
No raw water bypass during regeneration, adjustable maximum interval regeneration days.
-
Equipped with signal output port, remote control port, capable of receiving wireless signals.
-
With interlock function, can be used for simultaneous water supply and regeneration systems.
-
Optional operation according to time type and flow type.

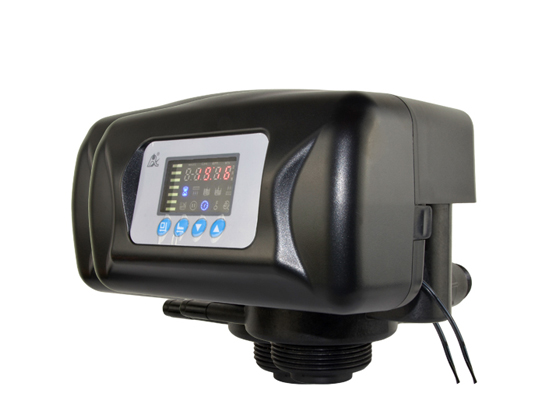

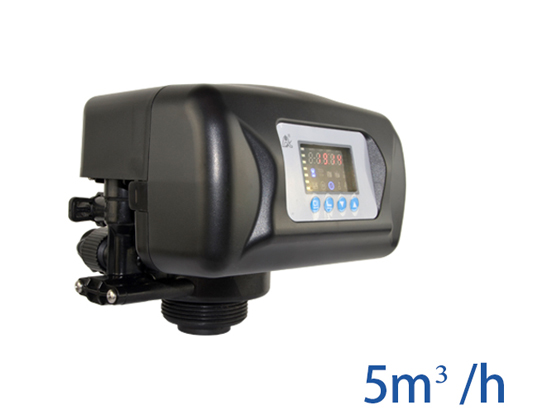

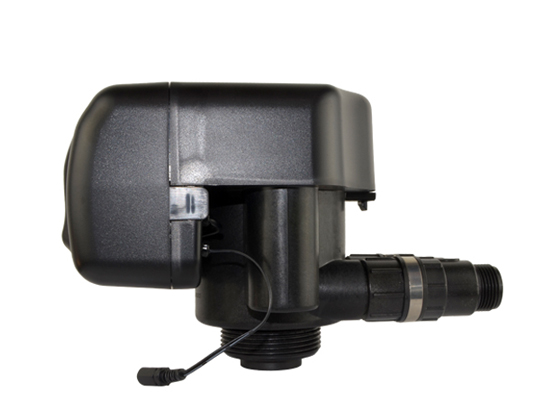

Home/Water Treatment Equipment/Automatic Softening Valve 73505(F92A1)/73605(F92A3)/
Wenzhou Runxin Manufacturing Machine Co. Ltd
ZheJiang-WenZhou, ChinaModel
Time Type: 73505(F92A1)
Flow Type: 73605(F92A3)
Installation Method:
Top-mounted
Inlet/outlet
1" M
Drain Port:
3/4" M
Salt Suction Port:
3/8" M
Base:
2.5"-8NPSM (Tank Port)
Center Tube:
1" D-GB
Water Output:
5 m³/h
Suitable Tank Size:
6"-24"
Operating Pressure:
0.15-0.6MPa
Inlet Water Temperature:
5-50°C
Inlet Water Turbidity:
Reverse osmosis regeneration < 2FTU
Suitable Power Supply:
Input AC100 ~ 240V/50 ~ 60HZ Output DC12V/1.5A
Applicable Scenarios:
Domestic softening, ion exchange systems, boiler water softening systems, reverse osmosis pretreatment softening systems.
