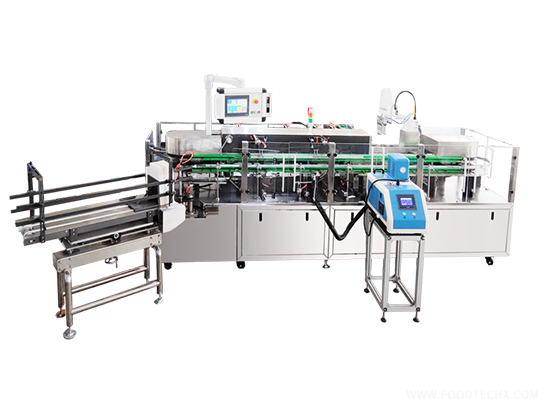

This machine is a fully automatic vertical type opening up cartoning machine. It is applicable for coffee products, salt, pasta, wash powder, chocolate, pet food, penicillin bottle, perfume bottle, etc. It is widely used in the industries of cosmetics, pharmacy, food and agricultural chemicals. This cartoning machine is able to encase irregular bulk items that horizontal cartoning machine can not do.Combined with the world advanced technology and our company’s powerful design team, this machine has obtained many design patents. It is favored by domestic and foreign companies.
Home/Filling Equipment/Automatic Vertical Motion Cartoning Machine---HT-ZH180/

HAITEC MACHINERY CO.,LTD
, ChinaModel
HT-ZH180
Product
coffee products, salt, pasta, wash powder, chocolate, pet food, penicillin bottle, perfume bottle, etc.
Capacity
80-200 cartons/minute (accord to clients’ box and products)
CARTON SIZE
Min: 30×30×50mm Max: 200×150×400mm
PAPER QUALITY OF CARTON
200-400g/m³
Power
3 phase 220/380v 50/60hz 3.5kw
Air Supply
0.5-0.7 Mpa
Weight
1600Kg
Dimension
4000mm×1200×1700mm
Product Description
Technical Parameter
