Product Characteristics
Simple structure and reliable sealing
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with Service, Backwash, and Fast Rinse.
No water pass the valve in rinsing in single tank type
Manual function
Realize rinsing immediately by pressing “Manual/Return” at any time.
Long outage indicator
If outage overrides 3days, the time of day indicator “12:12”will flash to remind people to reset new time of day. The other set parameters do not need to reset. The process will continue to work after power on.
LED dynamic screen display

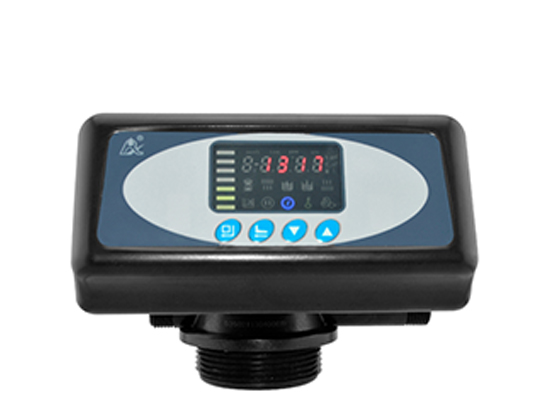

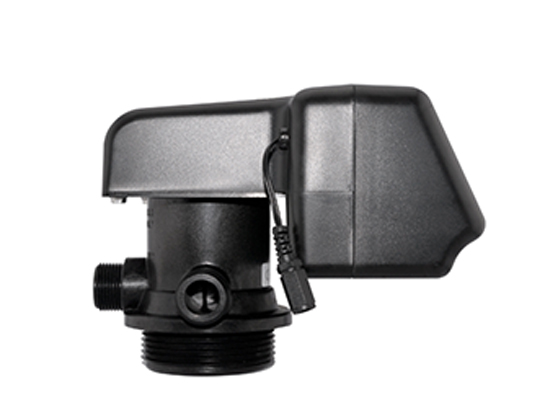

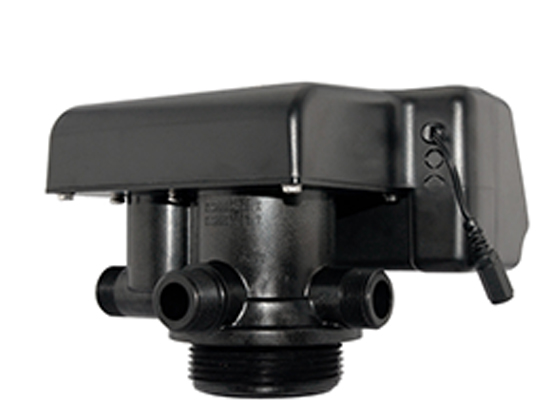

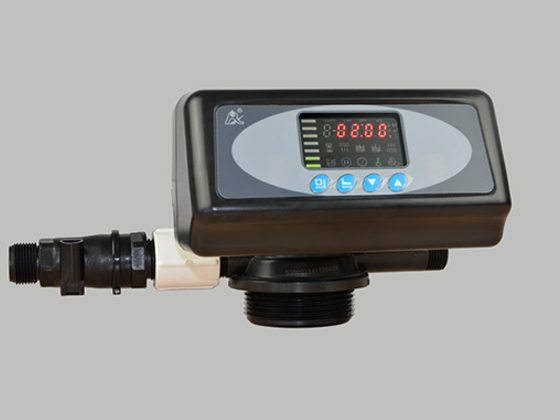

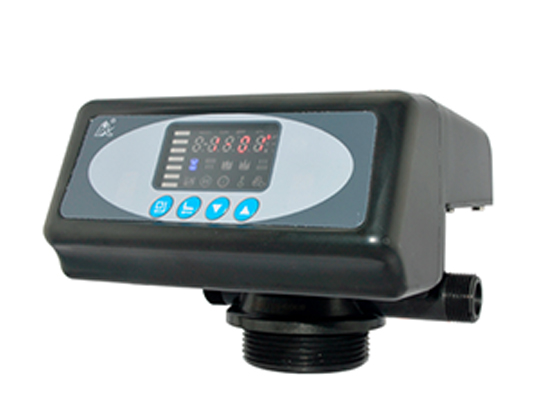

Home/Water Treatment Equipment/Automatic filter multi-way valve 53502(F71B1) 53602B(F71B3)/

Wenzhou Runxin Manufacturing Machine Co. Ltd
ZheJiang-WenZhou, ChinaModel
53502(F71B1)
Regeneration
Time clock type/Meter Type
Installation
Top-mounted
Inlet/outlet
3/4" M
Drain
3/4" M
Base
2.5"-8NPSM
Riser pipe
1.05" OD
Water treatment capacity
2 m³/h
Tank diameter range6"~10"
Water pressure0.15MPa~0.6MPa
Water temperature5℃℃~50℃C
Water turbidity<20FTU
Power adapterInput AC100.240V/50~60HzOutput DC12V/1.5A
ApplicationActivated carbonfilter; Sand filter
Filter mediaQuartz sand;Activated carbon
