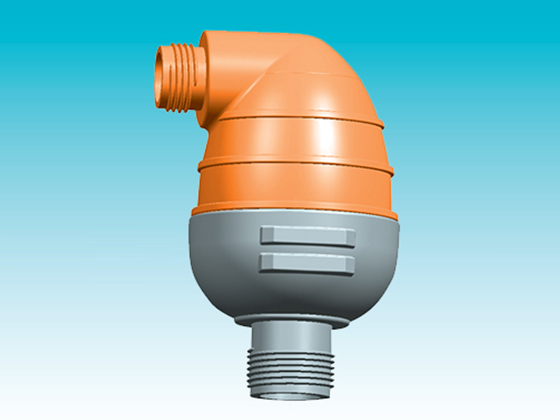

Home/Water Treatment Equipment/Spare parts/Water Tank/Plastic/Automatic intake & exjaist HXF-¾”/

Jieda Environmental protection Equipment Co.,Ltd.
ZheJiang-ShaoXing, ChinaFeatures:
-
Compact size and lightweight, suitable for installation on low-strength pipes such as plastic.
Applications:
-
Pump stations.
-
Before or after isolation valves.
-
At locations where the pipe slope changes.
-
At pipe peak points and along the hydraulic gradient line.
-
With an additional protective layer, it can be used for anti-theft or anti-vandalism purposes.
Operating Pressure Range:
0.02–1.0 MPa
Maximum Operating Temperature:
60℃ (90℃ for intermittent use)
Fitting Specifications:
3/4”, 1”, and 1 1/4” NPT/BSPT external threads
Product Description

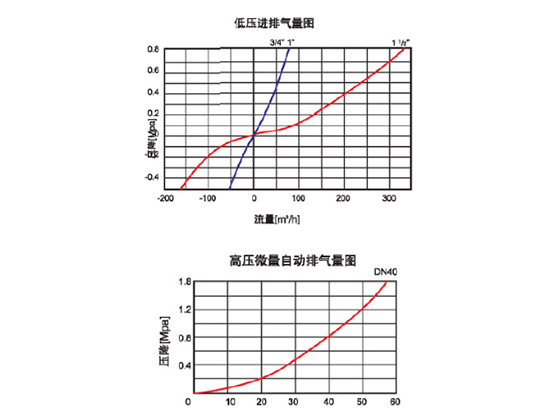

Technical Parameter

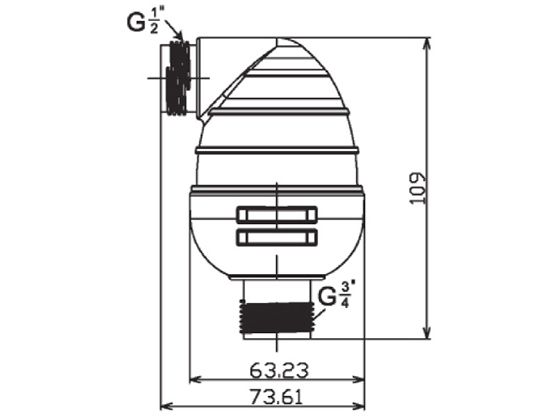

Technical Drawing
