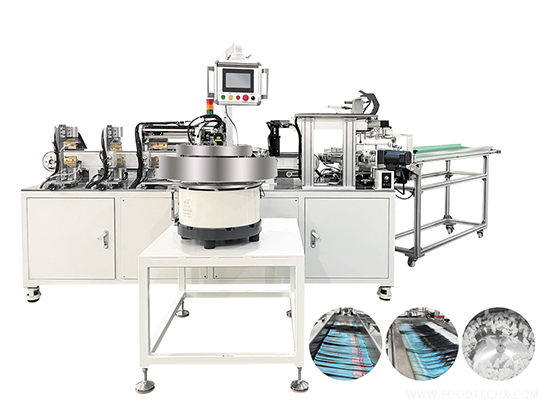

GuangDong-ZhongShan, ChinaThis machine is for flexible packaging bags inserting and sealing spout.
This machine adopts a long conveyor belt for bag placement. After bag picking, bag sorting, and servo module for bag placement, the bag is moved to the horizontal bag transfer line. The horizontal bag transfer line moves the bag to the workstation and sequentially performs spout inserting, initial sealing, heat sealing, and cold sealing to sealing the spout and the bag together. (Ensure that the bag opening is of appropriate size during bag making in advance).
Power:
AC 380V , 50HZ
Capacity:
8.0KW
Compressed air:
0.5-0.6Mpa, 200NL/min
Size:
LxWxH: 4000x4000x1700 (mm)
Number of workstation:
6 Station
spacing:
300mm;
Weight:
≈1000Kg
Quick-wear part:
Vacuum suction cup
Pouch size:
W*L= (150~250) x (180-310) mm ;spout on the top
Pouch size:
W*L= (120~250) x (150-310) mm; spout on the corner
