Guangdong Taijin Intelligent Equipment Co., Ltd.
GuangDong-JiangMen, ChinaThe injection table adopts a linear guiderail,precise guidance,low friction coefficient,low plasticizing resistance,low back pressure,fast injection response,
Model
DL120 - IIS(V)/320 - PET
Injection Unit
:
Screw diameter (mm)
46
Screw L/D ratio (L/D)
23
Injection volume (cm³)
266
Injection weight (PET) (g)
330
Injection rate (g/s)
197
Injection pressure (Mpa)
123
Plasticizing rate (PET) (g/s)
25.6
Screw speed (rpm)
176
Clamping Unit
:
Clamping force (kN)
1200
Mold opening stroke (mm)
410
Dist. between tie bars (hxV) (mm)
410×410
Mold height max (mm)
380
Mold height min (mm)
150
Ejector stroke (mm)
120
Ejector tonnage (kN)
42
Others
:
Pump motor power - kw(S)
15.3
Pump motor power - kw(V)
15
Heater power - kw
6.7
Machine dimension (LxWxH) - m
4.7×1.3×1.9
Machine weight - T
4.5
Oil tank - L
200
- DL120-IIS

- Special Project
- Special Project
- Special Project
- Products
- Products
Product Description
Technical Parameter

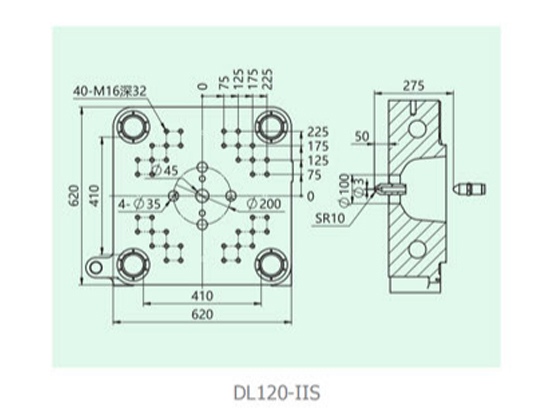

Technical Drawing
