Guangdong Taijin Intelligent Equipment Co., Ltd.
GuangDong-JiangMen, ChinaThe injection table adopts a linear guiderail,precise guidance,low friction coefficient,low plasticizing resistance,low back pressure,fast injection response,
Model

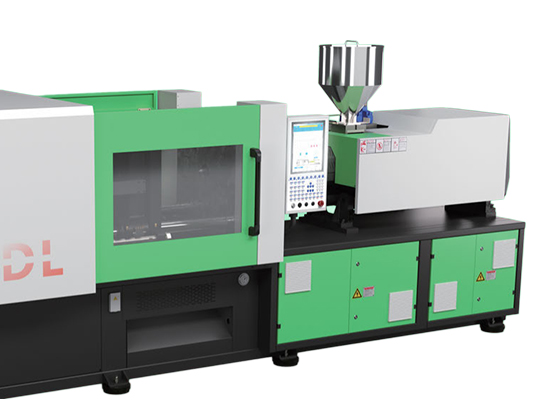

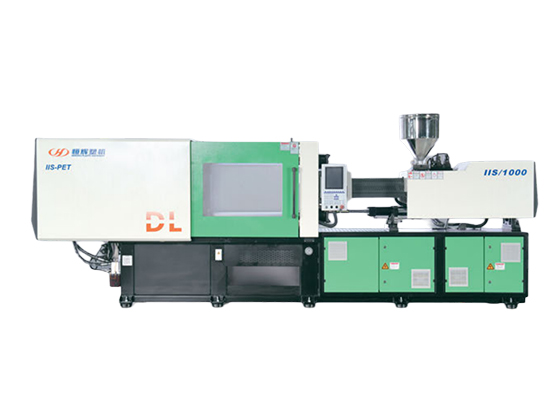

DL160 - IIS(V)/720 - PET
Injection Unit
:
Screw diameter (mm)
52
Screw L/D ratio (L/D)
23
Injection volume (cm³)
52
Injection weight (PET) (g)
580
Injection rate (g/s)
172
Injection pressure (Mpa)
154
Plasticizing rate (PET) (g/s)
35.8
Screw speed (rpm)
165
Clamping Unit
:
Clamping force (kN)
1600
Mold opening stroke (mm)
445
Dist. between tie bars (hxV) (mm)
470×460
Mold height max (mm)
500
Mold height min (mm)
160
Ejector stroke (mm)
130
Ejector tonnage (kN)
58
Others
:
Pump motor power - kw(S)
18.7
Pump motor power - kw(V)
18.5
Heater power - kw
8.4
Machine dimension (LxWxH) - m
2.54×2.1×3.2×0.6
Machine weight - T
5
Oil tank - L
250

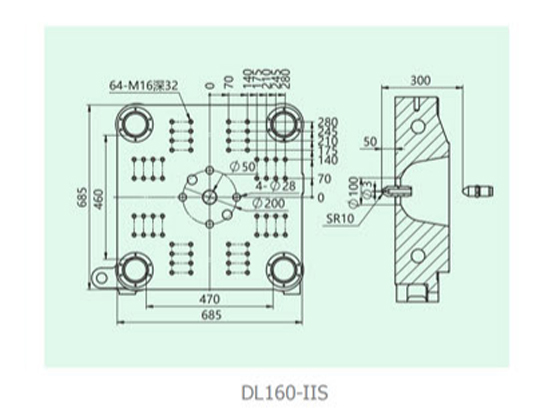

- DL160-IIS
