Guangdong Taijin Intelligent Equipment Co., Ltd.
GuangDong-JiangMen, ChinaThe injection table adopts a linear guiderail,precise guidance,low friction coefficient,low plasticizing resistance,low back pressure,fast injection response,
Model
DL200 - IIS(V)/1000 - PET
Injection Unit
:
Screw diameter (mm)
60
Screw L/D ratio (L/D)
23
Injection volume (cm³)
749
Injection weight (PET) (g)
930
Injection rate (g/s)
247
Injection pressure (Mpa)
135
Plasticizing rate (PET) (g/s)
48.3
Screw speed (rpm)
156
Clamping Unit
:
Clamping force (kN)
2000
Mold opening stroke (mm)
480
Dist. between tie bars (hxV) (mm)
520×510
Mold height max (mm)
550
Mold height min (mm)
180
Ejector stroke (mm)
150
Ejector tonnage (kN)
88
Others
:
Pump motor power - kw(S)
25.8
Pump motor power - kw(V)
22
Heater power - kw
16.4
Machine dimension (LxWxH) - m
5.83×1.43×2.15
Machine weight - T
6
Oil tank - L
260
- DL200-IIS

- Special Project
- Special Project
- Special Project
- Products
- Products
Product Description
Technical Parameter

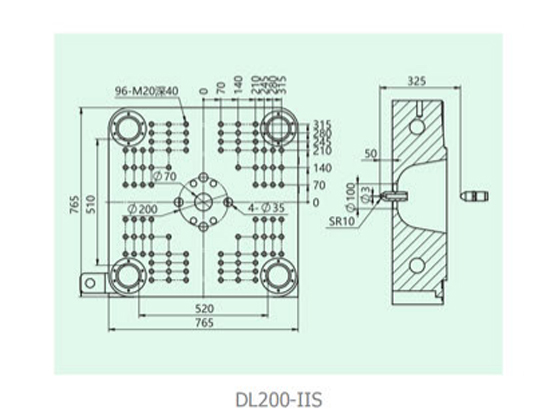

Technical Drawing
