Guangdong Taijin Intelligent Equipment Co., Ltd.
GuangDong-JiangMen, ChinaThe injection table adopts a linear guiderail,precise guidance,low friction coefficient,low plasticizing resistance,low back pressure,fast injection response,
Model
DL260 - IIS(V)/1550 - PET
Injection Unit
:
Screw diameter (mm)
67
Screw L/D ratio (L/D)
23
Injection volume (cm³)
1057
Injection weight (PET) (g)
1313
Injection rate (g/s)
289
Injection pressure (Mpa)
147
Plasticizing rate (PET) (g/s)
59.3
Screw speed (rpm)
144
Clamping Unit
:
Clamping force (kN)
2600
Mold opening stroke (mm)
525
Dist. between tie bars (hxV) (mm)
580×580
Mold height max (mm)
600
Mold height min (mm)
200
Ejector stroke (mm)
160
Ejector tonnage (kN)
99
Others
:
Pump motor power - kw(S)
29.9
Pump motor power - kw(V)
30
Heater power - kw
20.5
Machine dimension (LxWxH) - m
6.47×1.56×2.28
Machine weight - T
8.3
Oil tank - L
460

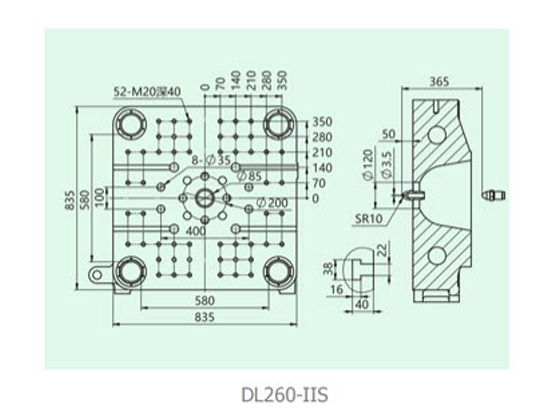

- DL260-IIS
