Guangdong Taijin Intelligent Equipment Co., Ltd.
GuangDong-JiangMen, ChinaThe injection table adopts a linear guiderail,precise guidance,low friction coefficient,low plasticizing resistance,low back pressure,fast injection response,
Model
DL320-IIS(V)/2180-PET
Injection Unit
:
Screw diameter (mm)
75
Screw L/D ratio (L/D)
23
Injection volume (cm³)
1501
Injection weight (PET) (g)
1864
Injection rate (g/s)
365
Injection pressure (Mpa)
145
Plasticizing rate (PET) (g/s)
77.3
Screw speed (rpm)
141
Clamping Unit
:
Clamping force (kN)
3200
Mold opening stroke (mm)
600
Dist. between tie bars (hxV) (mm)
690×680
Mold height max (mm)
660
Mold height min (mm)
220
Ejector stroke (mm)
180
Ejector tonnage (kN)
99
Others
:
Pump motor power - kw(S)
47.2
Pump motor power - kw(V)
37
Heater power - kw
28.8
Machine dimension (LxWxH) - m
7.2×1.7×2.3
Machine weight - T
11.5
Oil tank - L
630

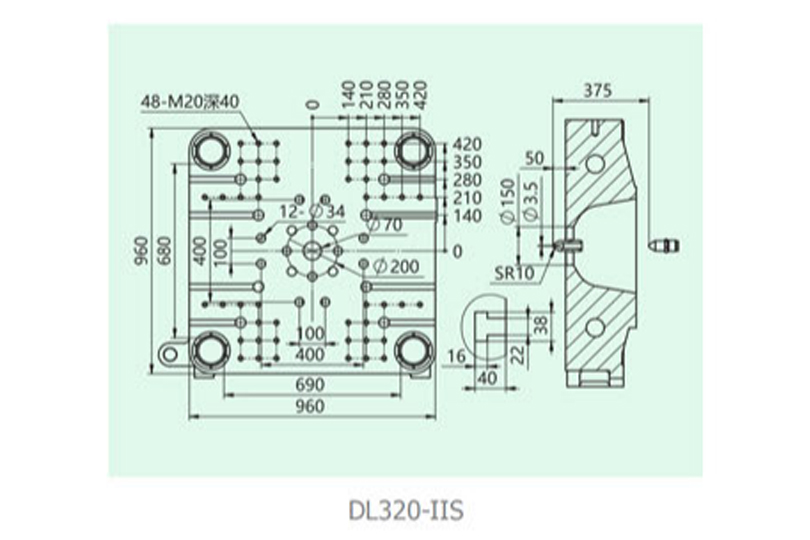

- DL320-IIS
