Guangdong Taijin Intelligent Equipment Co., Ltd.
GuangDong-JiangMen, ChinaThe injection table adopts a linear guiderail,precise guidance,low friction coefficient,low plasticizing resistance,low back pressure,fast injection response,
Model
DL400-IIS(V)/2900-PET
Injection Unit
:
Screw diameter (mm)
88
Screw L/D ratio (L/D)
24
Injection volume (cm³)
2006
Injection weight (PET) (g)
2491
Injection rate (g/s)
671
Injection pressure (Mpa)
127
Plasticizing rate (PET) (g/s)
105.5
Screw speed (rpm)
132
Clamping Unit
:
Clamping force (kN)
4000
Mold opening stroke (mm)
700
Dist. between tie bars (hxV) (mm)
750×730
Mold height max (mm)
750
Mold height min (mm)
250
Ejector stroke (mm)
215
Ejector tonnage (kN)
166
Others
:
Pump motor power - kw(S)
65
Pump motor power - kw(V)
-
Heater power - kw
35.1
Machine dimension (LxWxH) - m
7.9×1.9×2.4
Machine weight - T
17
Oil tank - L
900
- DL400-JIS

- Special Project
- Special Project
- Special Project
- Products
- Products
Product Description
Technical Parameter

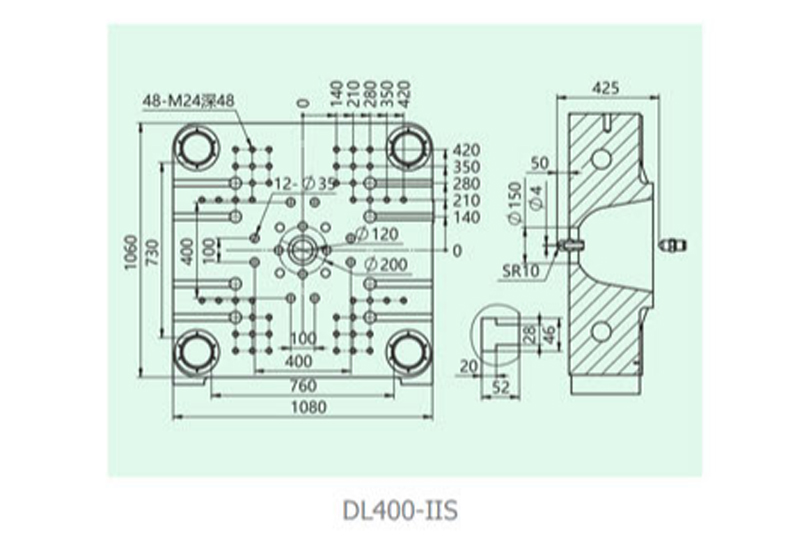

Technical Drawing
