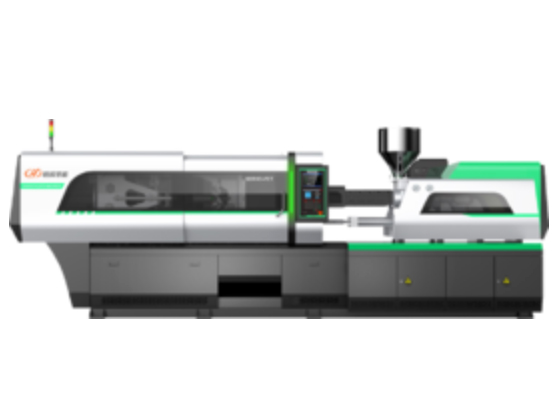

Name: B5 Series Standard Injection Molding Machine ---HM120B5S
Brand: Guangdong Taijin Intelligent Equipment Co., Ltd.
SKU: 73ea63c9671ab559fa216fdf03da80d5
Price: 46800 USD
Availability: InStock
Rating: 4.8 (20 reviews)

Guangdong Taijin Intelligent Equipment Co., Ltd.

GuangDong-JiangMen, China

Improved Safety System
- Description: Increase electrical and hydraulic safety protection.
- Significance: Enhance the safety performance of equipment operation, reducing potential safety hazards in production.
High - Precision Linear Guideway
- Description: Low back pressure, energy - saving, high repeatability.
- Significance: Ensure the stability and accuracy of equipment movement, improving product processing precision.

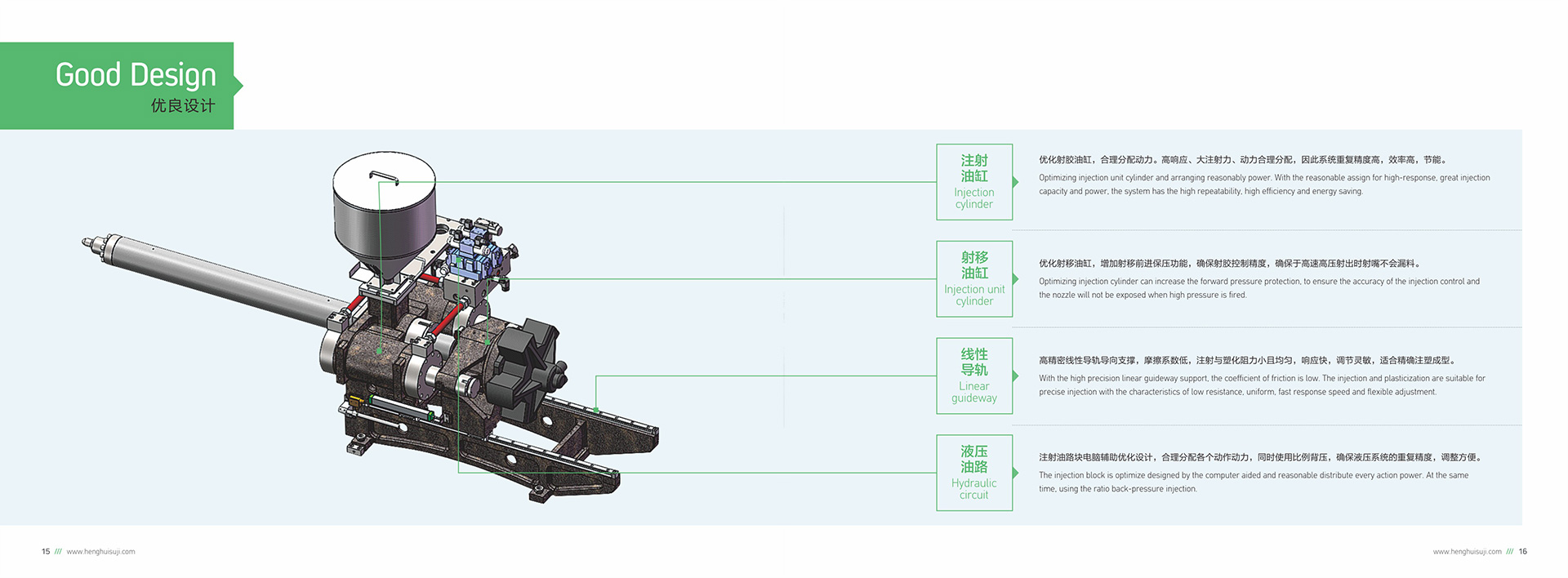

Optimized Screw Design
- Description: Good plasticization effect and high repeatability.
- Significance: Improve the plasticization quality of materials, ensuring consistent product quality.

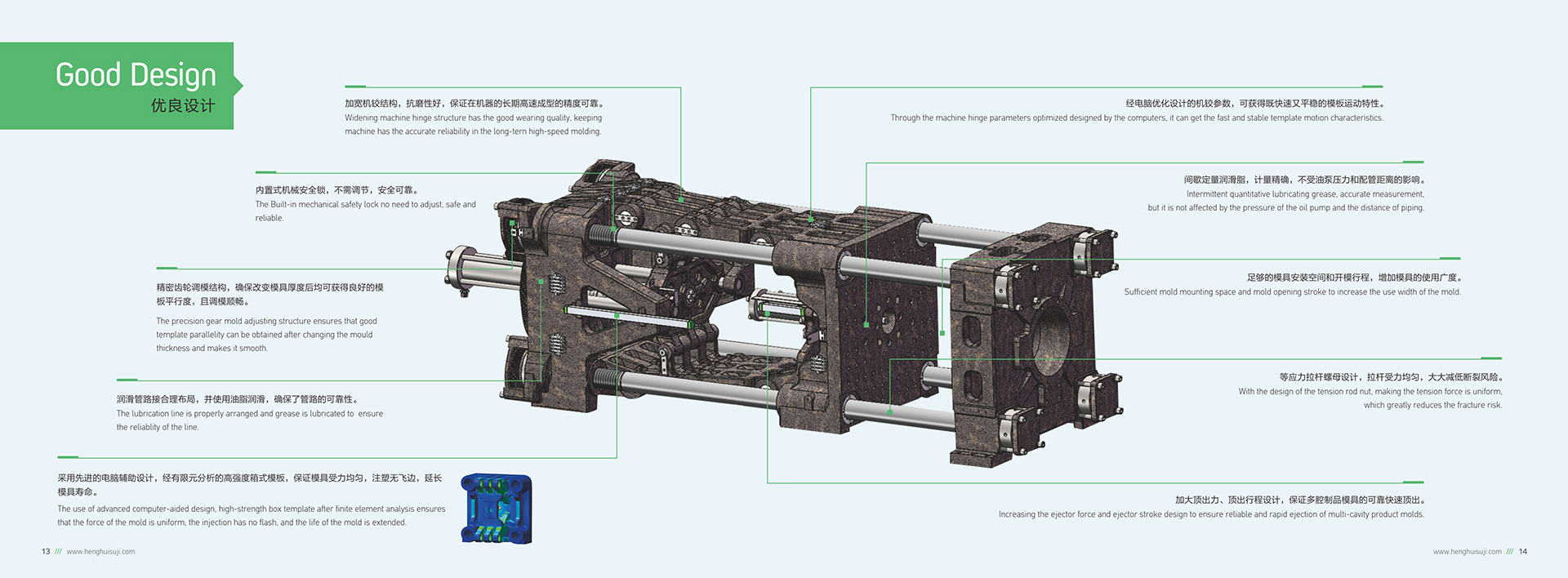

Optimization of Clamping Unit Structure
- Description: Having good rigidity, smooth movement, built - in safety rod, enlarging the opening stroke, and improving pin shaft and guide column.
- Significance: Strengthen the clamping stability, ensure smooth mold opening and closing, and prolong the service life of mold - related components.
Control System Improvements
- Description: Highly responsive and stable, targeted optimization programs, reliable and accurate temperature control.
- Significance: Realize precise control of the production process, adapt to different production needs, and ensure product quality through accurate temperature management.

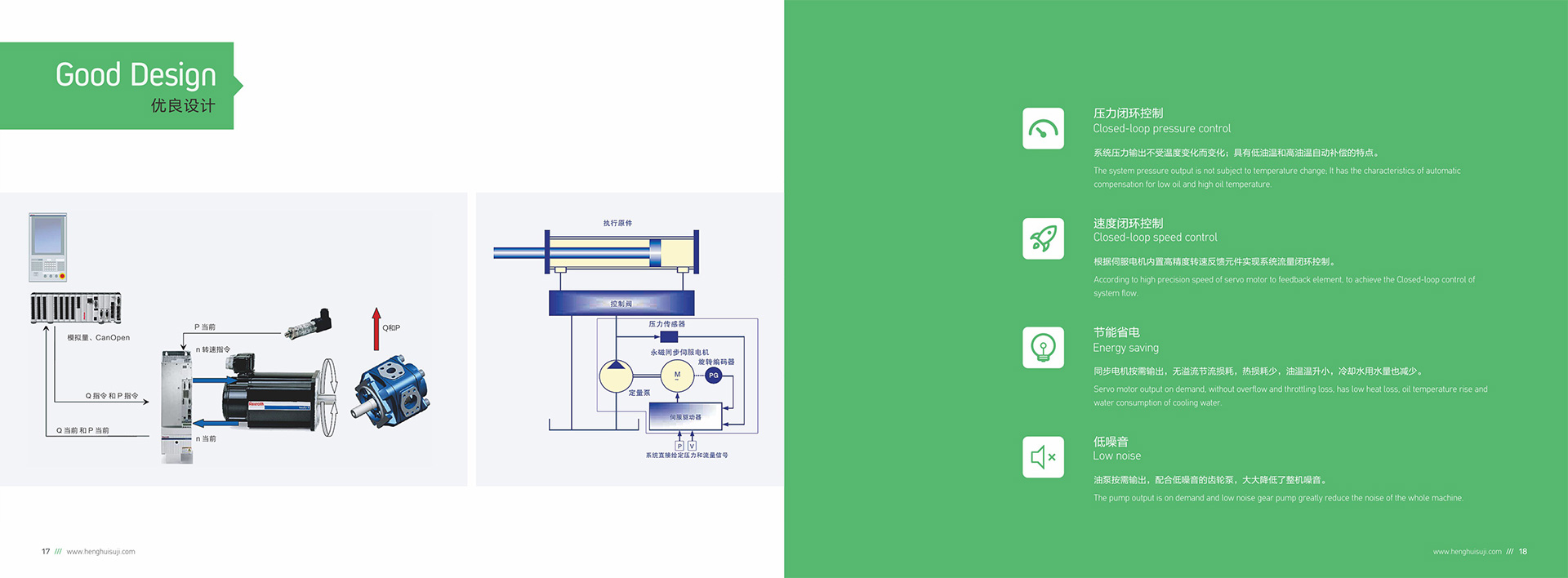

Hydraulic System Optimization
- Description: Large pipe diameter, short passes, energy - saving, high response speed, and long service life of hydraulic oil.
- Significance: Improve the power output efficiency of the equipment, save energy consumption, and reduce maintenance costs.

Instructions

HM120B5S

Screw diameter mm

36 42 46

Screw L/D Ratio L/D

23.3 20 18.3

Theoretical Shot volume cm³

160 222 266

Injection Weight(PS) g

151 208 250

Injection Weight(PS) oz

5.3 7.3 8.8

Theoretical Injection Rate cm³/s

103 140 168

Plasticizing Pressure psi

166 226 29.2

Injection Pressure MPa

189 139 16

Screw stroke mm

160 Screw speed Rpm

185 Clamping force kN

1200

Tonnage stroke mm

380 Space Between Tie Bars mm

410×410

Max. mould Height mm

450 Min. mould Height mm

150 Ejector stroke mm

120 Ejector force kN

42 Ejector Number Piece

5 Max. Pump Pressure MPa

17.5 Major motor KW(S)

11.6 Heater Power KW

7 NO. of heater zones Unit

3+1

Machine Dimension(L×W×H) m

4.2×1.1×1.6

Machine Weight Ton

3.1 Oil Tank capacity L

200

Tell Us What You Need

Guangdong Taijin Intelligent Equipment Co., Ltd.

Improved Safety System

Description: Increase electrical and hydraulic safety protection.

Significance: Enhance the safety performance of equipment operation, reducing potential safety hazards in production.

High - Precision Linear Guideway

Description: Low back pressure, energy - saving, high repeatability.

Significance: Ensure the stability and accuracy of equipment movement, improving product processing precision.

Optimized Screw Design

Description: Good plasticization effect and high repeatability.

Significance: Improve the plasticization quality of materials, ensuring consistent product quality.

Optimization of Clamping Unit Structure

Description: Having good rigidity, smooth movement, built - in safety rod, enlarging the opening stroke, and improving pin shaft and guide column.

Significance: Strengthen the clamping stability, ensure smooth mold opening and closing, and prolong the service life of mold - related components.

Control System Improvements

Description: Highly responsive and stable, targeted optimization programs, reliable and accurate temperature control.

Significance: Realize precise control of the production process, adapt to different production needs, and ensure product quality through accurate temperature management.

Hydraulic System Optimization

Description: Large pipe diameter, short passes, energy - saving, high response speed, and long service life of hydraulic oil.

Significance: Improve the power output efficiency of the equipment, save energy consumption, and reduce maintenance costs.

Product Description

Technical Parameter

Technical Drawing
