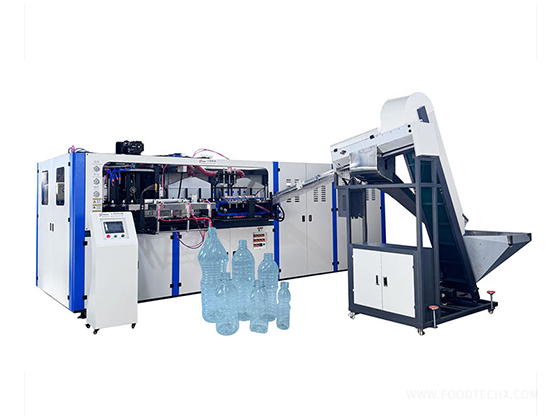

Taizhou Baoge Machinery Co., Ltd.
ZheJiang-TaiZhou, ChinaModel
BG-6000
Theoretical output
12000-14000 bph
Bottle type specification
:
1. Max. bottle volume
2L
2. Bottle mouth maximum overall diameter
28-30mm
3. Max. bottle diameter
100mm
4. Max. bottle height
330mm
Mold specifications
:
1. Cavity
6
2. Bottle type volume
500ml
3. Bottle type weight
17g
4. Bottle type
Round
Power specification
:
1. Light tube quantity
32pcs
2. Light tube power
2KW/3KW
3. Maximum heating power
76KW
4. All electric machine installation
98KW
5. Actual consumption
30%-60%
Air source
:
1. Work pressure
5-6kg/c㎡
Blow bottle pressure
25-45kg/c㎡
Higher -pressure gas consumption
8000Ltr/min
Forzen water specification
:
1. Work pressure
5-6 kg/c㎡
2. Temperature range
10℃
3. Consumption
8000kcal/hr
4. Frozen water flow
120L/min
Machine specification
:
1. Machine size
5.2x2.1x2.38
2. Machine weight
8.5ton
Product Description
Technical Parameter
