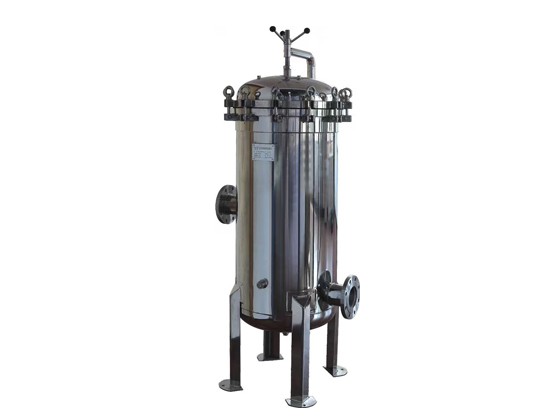

Multi-cartridge Filter Housing are clamp closure designed for industrial grade filtration. These are made of durable SS 304 or 316L.Sandblasted,brushed & electro polished with operating pressure up to 100 psi. They are suitable for RO Plants, Water Treatment Plants, Paints, Waste water recycling, Petrochemicals and Plating Solutions.
Features And Benefits of BN5-W27L4 Cartridge Filter Housing
- 304 & 316L SS Electro polished material of construction for maximum corrosion resistance
- Clamp closure design with 100 psi maximum operating pressure assures secure sealing and easy cartridge change out
- Suitable for high temperature service up to 90 C
- Ideal for : Water, Paints, Photographic solutions, Food & Beverage, Petrochemicals, Pharmaceuticals, Plating solutions
- All models available with vent and drains for easy cartridge change and maintenance

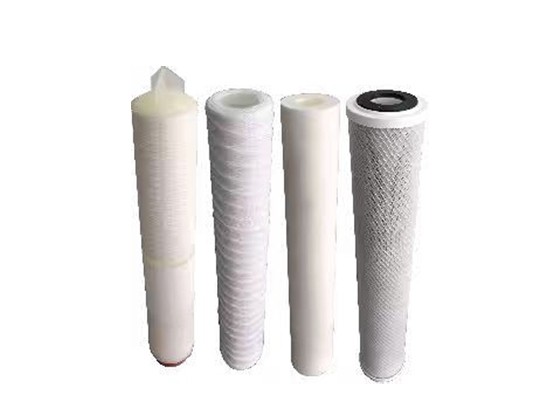

- Accept 3-160 rounds filter cartridge in length of 10”, 20”, 30” or 40” from variety brand
- Accept cartridges with Double Open End (DOE)
- Standard shell O-ring to be Buna-N
Technical parameters of BN5-W27L4 Cartridge Filter Housing
- Working pressure: 0.6 / 1.0 / 1.6Mpa
- Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
- Operating temperature: 5 ~ 40 degree centigrade
- Design temperature: 5 -90 degree centigrade
- Replace the pressure: 0.05Mpa-0.07MPA
- Filter interface: flat compression, plug-in
- Cylinder and base connection mode: quick opening, bolt type
- Filtration accuracy: 1μm ~ 100μm
- Cartridge Quantity: 1 core to 160 cores
- Cartridge filter Length: 10 "~ 40"
- Seal type: O-ring or flat washer
- Surface finish: Sandblast, mirror electrolytic polishing.
- Sealing material: nitrile rubber, silicone, Viton, standard configuration for the silicone seal.
- Interface Type: GB,, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.
- Flange Standard: GB, HG, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)
- Manufacturing, testing standard: GB150 standard, or user-specified criteria.
