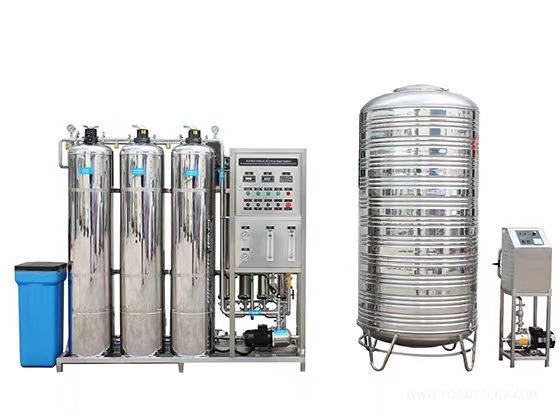

Home/Water Treatment Equipment/Pure Water /BY-RO-1T (SC) Reverse Osmosis Pure Water Equipment/
GuangZhou Huihong Environmental Protection Equipment Co., Ltd
GuangDong-GuangZhou, ChinaPretreatment System Unit
：
1.
Mechanical Filter
Quartz Sand Tank ： 350×1400
1 Unit --- SS304 Stainless Steel; Chengda
Microcomputer Control Valve ：F67Q1
1 Unit --- Wenzhou Runxin
Refined Quartz Sand ： Mixed Mesh
3 Bag
Central Pipe/Water Distributor/Collector ： 26.5mm
1 Set
Pressure Gauge ：1Mpa
1 Set --- Stainless Steel Oil-Filled Shockproof
2.
Activated Carbon Filter
Activated Carbon Tank ： 350×1400
1 Unit --- SS304 Stainless Steel; Chengda
Microcomputer Control Valve ：F67Q1
1 Unit
Activated Carbon ：1-2mm
2 Bags
Cushion Layer Quartz Sand : 4-8mm
1 Bag
Central Pipe/Water Distributor/Collector ：26.5mm
1 Set
3.
Softening Filter
Softening Tank ：350×1400
1 Unit --- SS304 Stainless Steel; Chengda
Microcomputer Control Valve : F116Q1
1 Unit --- Wenzhou Runxin
Resin : 001×7
4 Bags
Salt Tank : 200L
1 Unit
Salt Pipe & Salt Valve : 10
1 Set
Upper & Lower Water Distributors : 26.5mm
1 Set
4.
Precision Filter
Precision Filter : 5-Cartridge 20-Inch
1 Unit --- SUS304 Stainless Steel
Air Release Valve : DN10
1 Piece --- SUS304 Material
Filter Cartridge : 20-Inch
5 Piece --- PP Melt Blown Material
Pressure Gauge : 1MPA
1 Piece --- Stainless Steel Oil-Filled Shockproof
Power Booster Unit
:
1.
Raw Water Booster Pump
CHL2-50, 2m³/H, 36m Head, 0.55kW : Horizontal Multistage Pump
1 Unit --- Nanfang Pump
2.
RO/NF High Pressure Pump
CDL2-18, 2.2kW : Vertical Multistage Pump
1 Unit --- Nanfang Pump
RO Reverse Osmosis Unit
:
1.Equipment Main Frame : 1T
1 Set --- Stainless Steel
2. Reverse Osmosis Membrane Vessel : 8040-1 (8040)
1 Piece --- SUS304 Material
3. Reverse Osmosis Membrane Element : 8040 (1000L/Piece)
1 Piece --- DuPont Dow
4. Pressure Gauge :1MPA/3MPA (Panel-Mounted)
3 Set --- Oil-Filled Shockproof
5. RO Concentrated Water Flowmeter : 10 Gallon (Panel-Mounted)
1 Piece --- Acrylic Rotameter Type
6. RO Pure Water Flowmeter : 10 Gallon (Panel-Mounted)
1 Piece --- Acrylic Rotameter Type
7. RO Flush Valve : DN20 ( Solenoid Valve)
1 Unit --- Brass
8. RO Concentrated Water Regulating Valve : DN20 (Diaphragm Valve)
1 Unit --- PVC
9. Inlet Solenoid Valve : DN25 (Solenoid Valve)
1 Unit --- Brass
10. Conductivity Monitor : 0-1000us/cm (LCD Display)
1 Unit --- Jishen
Conductivity Monitor : 0-3000us/cm (LCD Display)
1 Unit --- Jishen
11. Equipment Connecting Pipe Fittings : PVC
1 Batch
12. UV Sterilizer : 28W,
1 Set
13. Ozone Mixing Pump : CHL2-40
1 Set
14. Ozone Generator : 5g/h
1 Set
15. Stainless Steel Water Tank : 2000L,
1 Set
Electrical Control System:
1. RO Controller : RO Control System1 Unit --- Kerryda
2. Electrical Control Box : Stainless Steel1 Unit --- Yiyong
3. Low-Voltage Electrical Components : AC Contactor, Intermediate Relay, Buttons, Switches1 Set --- Delixi
4. Wires & Cables : Matching1 Set --- High-Quality Domestic
Chemical Dosing System:
1. Chemical Dosing Tank : 40L1 Unit --- PE
2. Chemical Dosing Pump : 1L/H1 Unit
3. Antiscalant : 25kg1 Barrel
4. Square Cleaning Water Tank : 40L1 Unit --- PE
Complimentary Items:
1. Liquid Level Float Switch2 Pieces
2. Liquid Level Float Switch1 Piece
3. Filter Cartridge : 20-Inch3 Pieces
