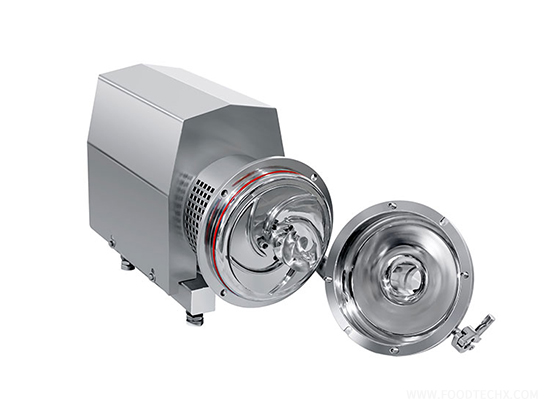

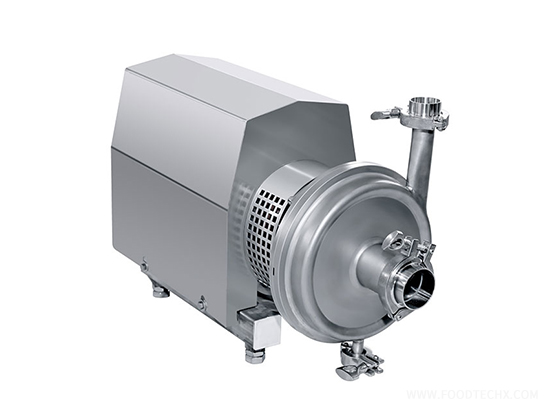

BYO-WF Sanitary Negative Pressure Pump

Name: BYO-WF - 3m³/h - 16m--- Sanitary Negative Pressure Pump
Brand: Zhejiang Baiyue Fluid Equipment Co., Ltd.
SKU: 369fc329545844429bf94307816b6c98
Price: 999 USD
Availability: InStock
Rating: 4.8 (20 reviews)

Specifications

Capacity: 1T–500T

Power: 0.75KW–75KW

Material

SUS304, SUS316L

All parts in contact with media such as pump body, pump cover and impeller are made of SUS304 or SUS316L stainless steel.

Standard

DIN, SMS standard; various impeller types available.

Application

It is a turbine guide centrifugal negative pressure pump, which can extract liquid from vacuum tanks under a negative pressure of 0.09 MPa.

Working Conditions

The sanitary negative pressure pump is suitable for high-low liquid level delivery and horizontal conveying, and comes with certain suction capacity.

Motor

Equipped with high-efficiency M2BAX three-phase AC motor of ABB brand as standard. Designed and manufactured in accordance with IEC60034 and IEC60072 standards, complying with EU CE marking requirements.
Explosion-proof motor is optional to meet the requirements of different working occasions.
Excellent electrical performance, low noise and low vibration. Standard motor protection grade: IP55; insulation class: F.
Frequency: 50Hz/60Hz
Duty: Continuous (SI)
Rotation speed: 2900r/min for standard pump

Specifications:

0-500T, 0.75kW-75kW

Maximum import pressure:

0.8MPa

Temperature range:

-10°C~150°C

Impeller form:

open impeller and semi-open impeller

Material:

304 316L

Connection:

Clamp union flange

Mechanical seal:

Double mechanical seal ; Dry grinding type mechanical seals

Static sealing:

Silicone rubber, Fluorine rubber, PTFE, EPDM

Motor:

B35

Protection grade:

IP55 IP54

Voltage:

220V 380V 400V/ ±5%

Speed:

2900rpm
