The machine action is completed by the coordination of servo motors and cylinders, fast, stable, suitable for use in food, chemical, pharmaceutical, grease, tobacco, dried fruits, and other industries;
-
The machine picks up the film bag from the carton flap, and the bag is lifted, aligned, and sealed by the combination of the gripper mechanism, mobile frame, and cylinder, and then accurately sent to the next position;
-
It can be used as a single machine or in conjunction with the front automatic bagging machine and the back automatic sealing machine for packaging line use;
-
It can be designed non-standard for the inner bag packaging characteristics of cartons, barrels, plastic bins, etc.;
-
The specifications can be changed within the applicable range, with an adjustment time of 10-15 minutes.

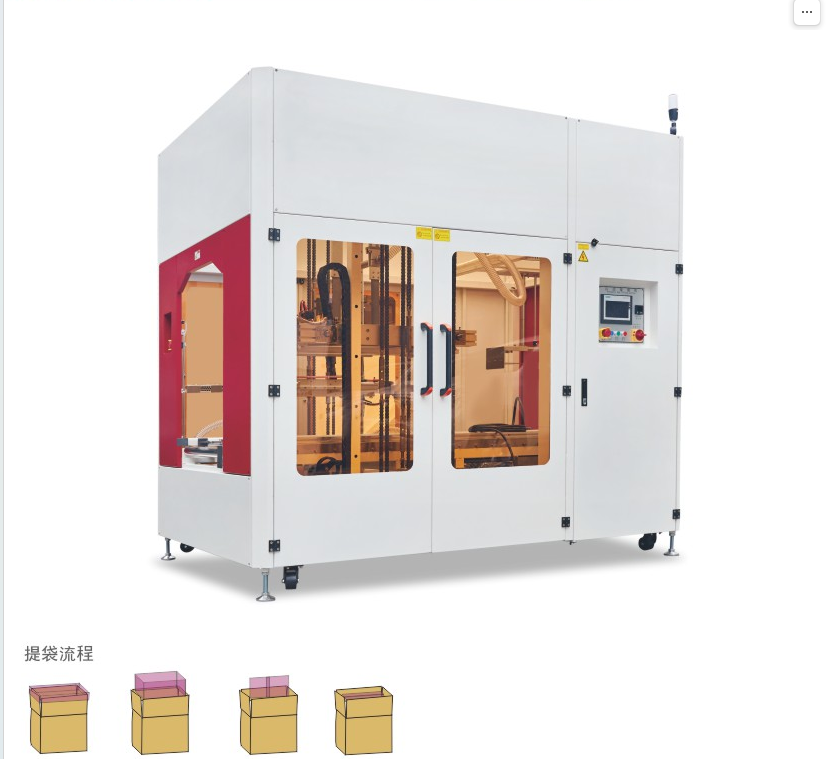

Home/Packaging equipment/Bag sealing machine---SDW-CM500F/

Shenzhen Xiaohui Packaging Technology Co., Ltd.
GuangDong-ShenZhen, ChinaMachine Dimensions:
L2450 * W1550 * H2270mm
Power Supply:
3-phase 380V 50Hz 5KW
Air Supply:
0.6-0.7Mpa
Air Consumption:
500NL/min
Machine Weight:
650kg
Suitable Carton Size:
L300-500 * W200-400 * H150-400mm (Standard Machine)
Table Height:
650mm
Applicable Capacity:
5-6 boxes/min
Sealing Type:
M-bag type sealing, straight-bag type sealing, optional
Applicable Material:
PE material, single layer 0.04-0.1mm thick
Product Description
Technical Parameter
